Cobra Tilt Bucket
The Cobra Tilt Bucket is built for precision earthmoving, batter work, and final trim applications. Featuring a heavy-duty twin ram design with 45 degrees of tilt in either direction, it delivers a full 90-degree operating range for greater control, flexibility, and efficiency on the job site.
Designed to handle challenging conditions, the Cobra Tilt Bucket features a tapered bucket profile with a 5-degree taper both horizontally and vertically, helping material release more easily in sticky ground and reducing carryback. The internal gusset reinforcement adds extra strength where it matters most, while the HB350 steel body and HB400 wear edges provide long-lasting durability for demanding everyday use.
Ideal for shaping batters, ditch cleaning, contouring, landscaping, and site finishing, the Cobra Tilt Bucket reduces the need to constantly reposition your excavator, helping operators work faster and more accurately. Backed by a 3-year warranty and free freight to selected depots, it’s a dependable attachment built tough for New Zealand conditions.
Features
-
Bolt-On Cutting Edge
Fast replacement when wearing occurs. (Bolt on edge standard for 6-9T buckets & above.)
-
HB400 Cutting Edge
High Strength HB400 wear steel cutting edge designed for durability in demanding conditions.
-
Tapered Bucket Design
5-degree horizontal and vertical taper improves sticky material release and allows operators to work closer to obstructions.
-
Twin Ram 45° Tilt
Heavy-duty twin ram design provides 45 degrees of tilt in either direction for greater control and flexibility on site.
Benefits
-
Free Freight
To nearest depot around New Zealand
-
Built for Tough Conditions
HB350 steel body with reinforced wear areas designed to handle demanding earth moving applications.
-
36 Month Warranty
Industry-leading 3-year warranty for added confidence and long-term reliability.
-
Increased Effiency on Site
90-degree total tilt range reduces the need to constantly reposition the excavator, helping operators work faster and more efficiently.
-
Faster, More Accurate Finishing
Ideal for batter work, shaping, contouring, ditch cleaning and final trim applications.

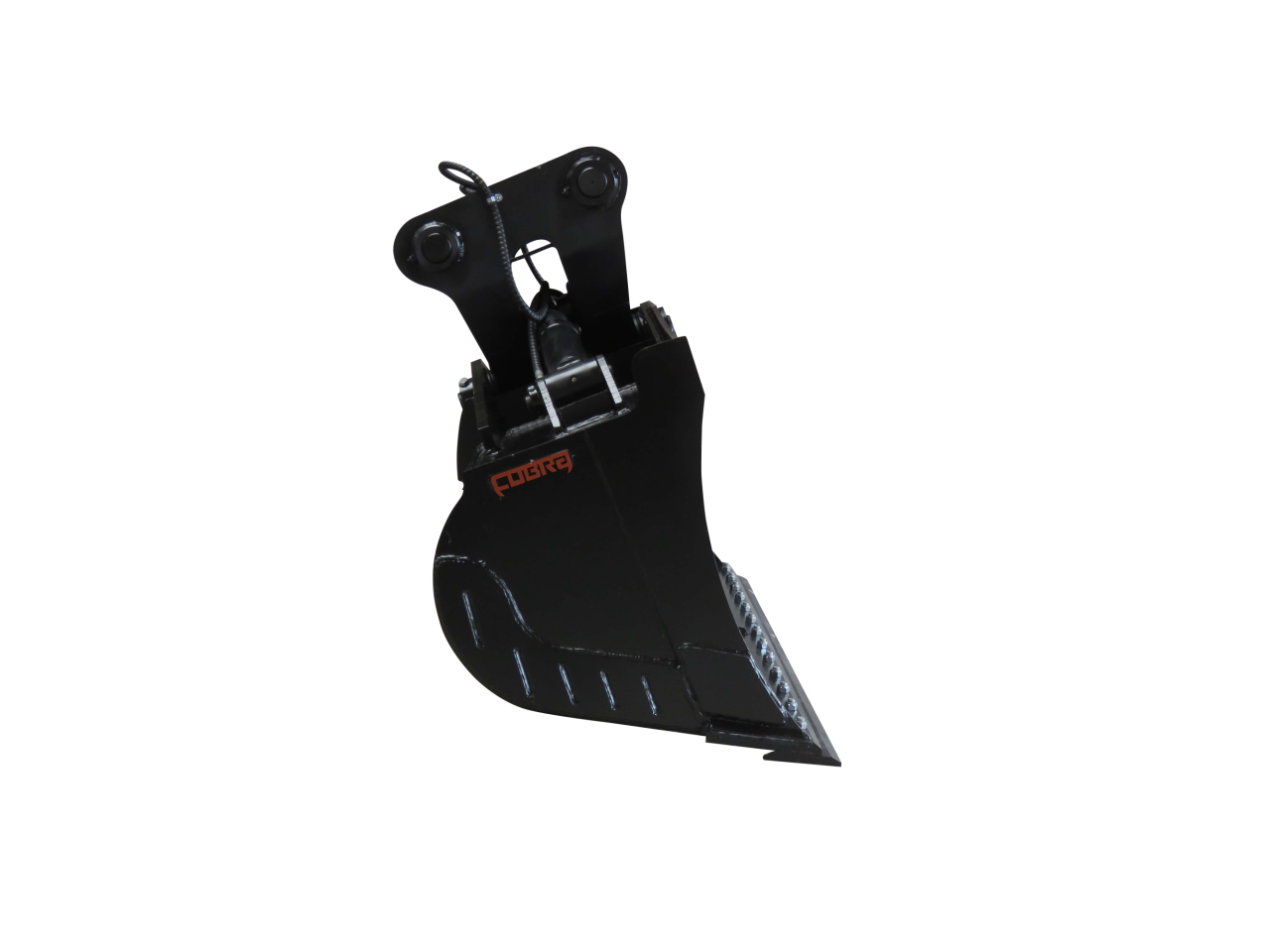

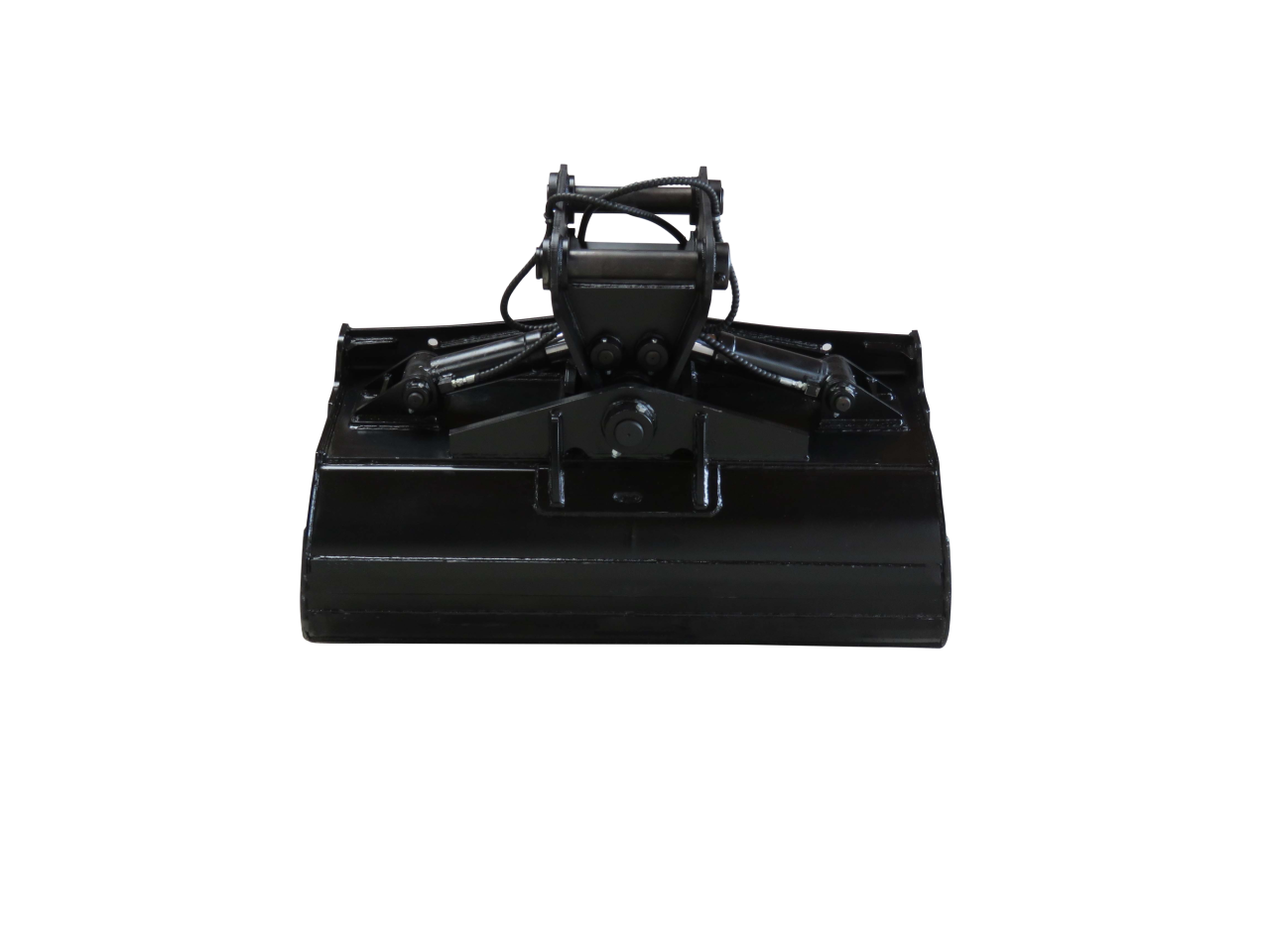

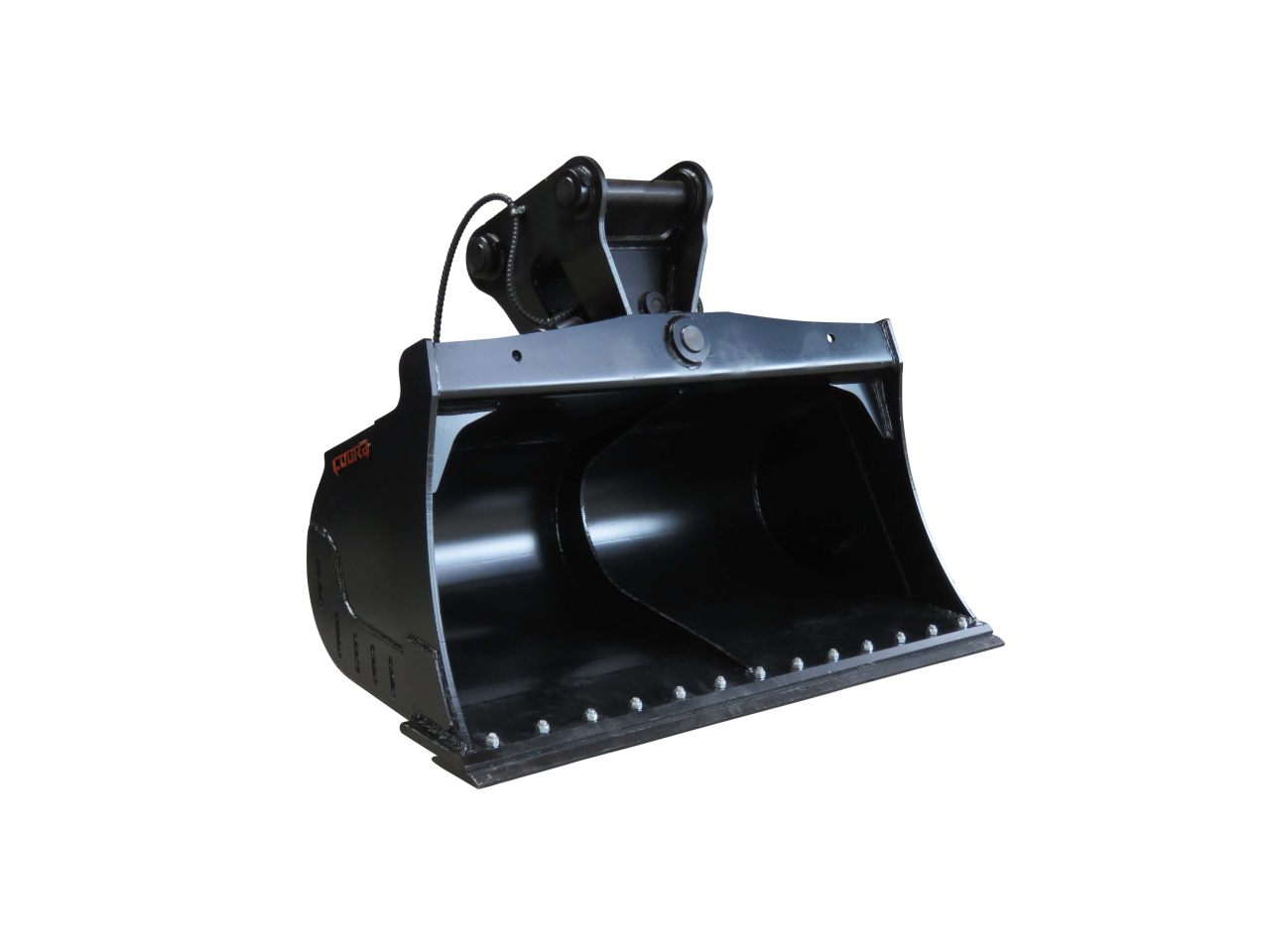

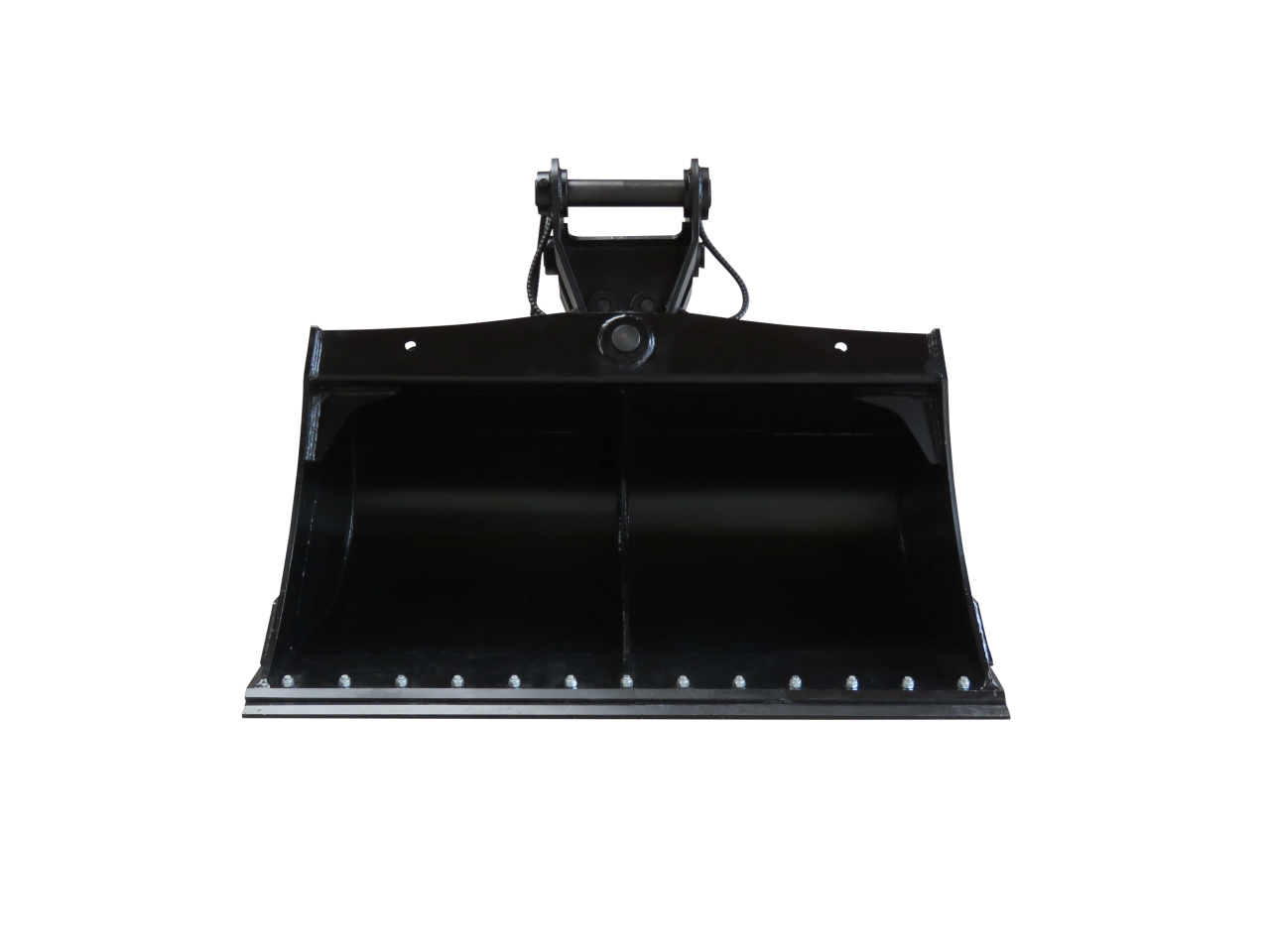

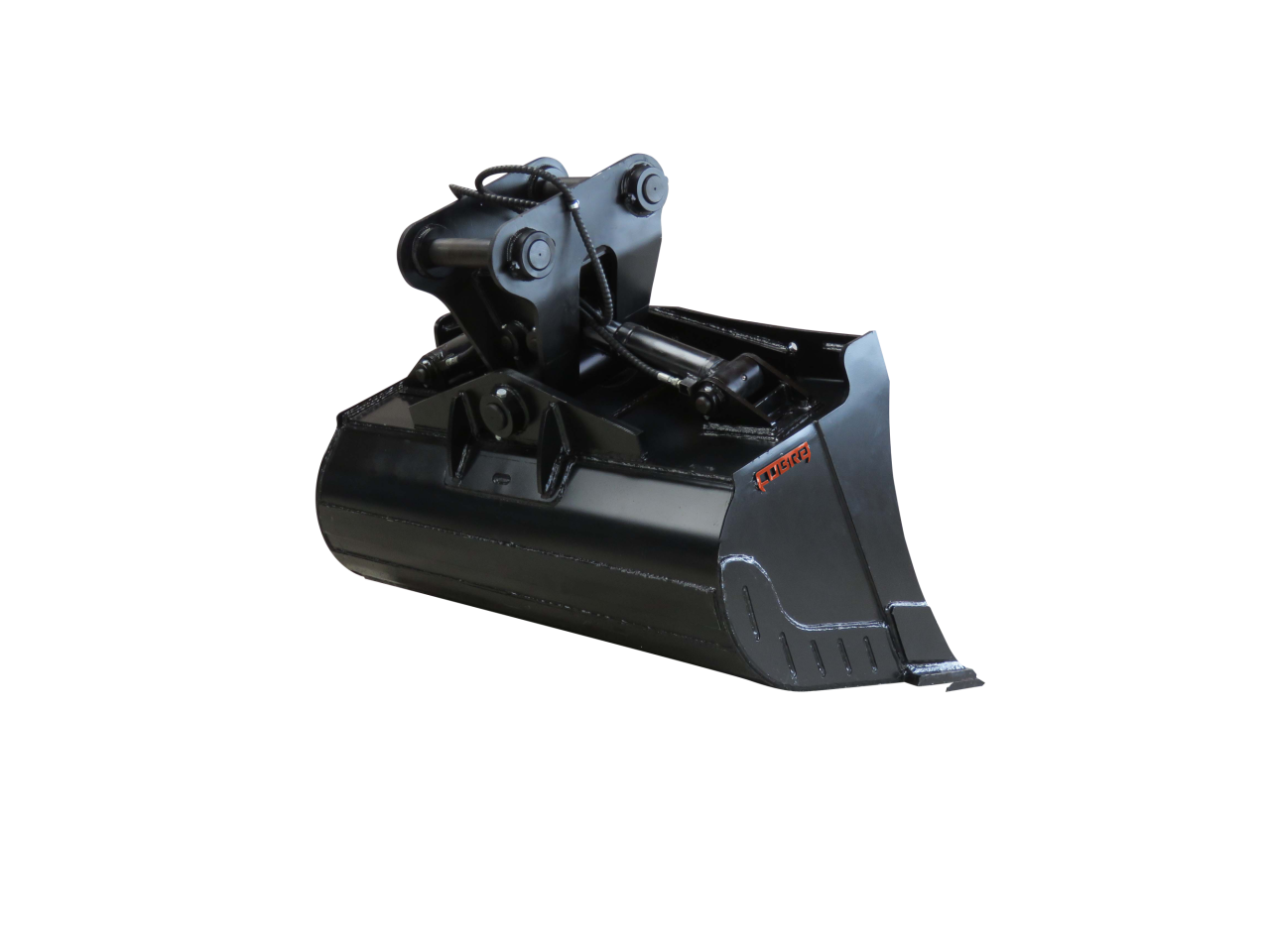

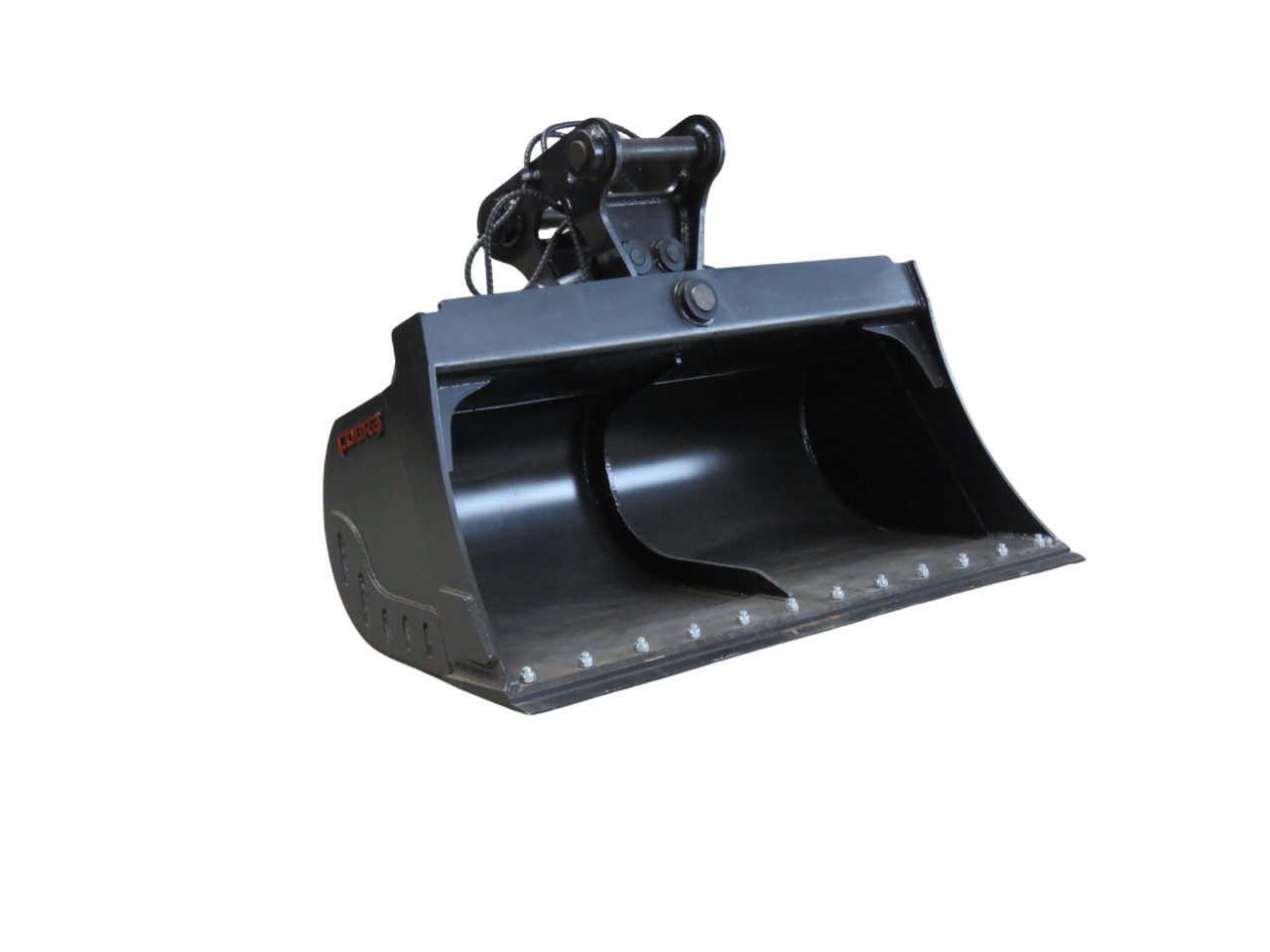

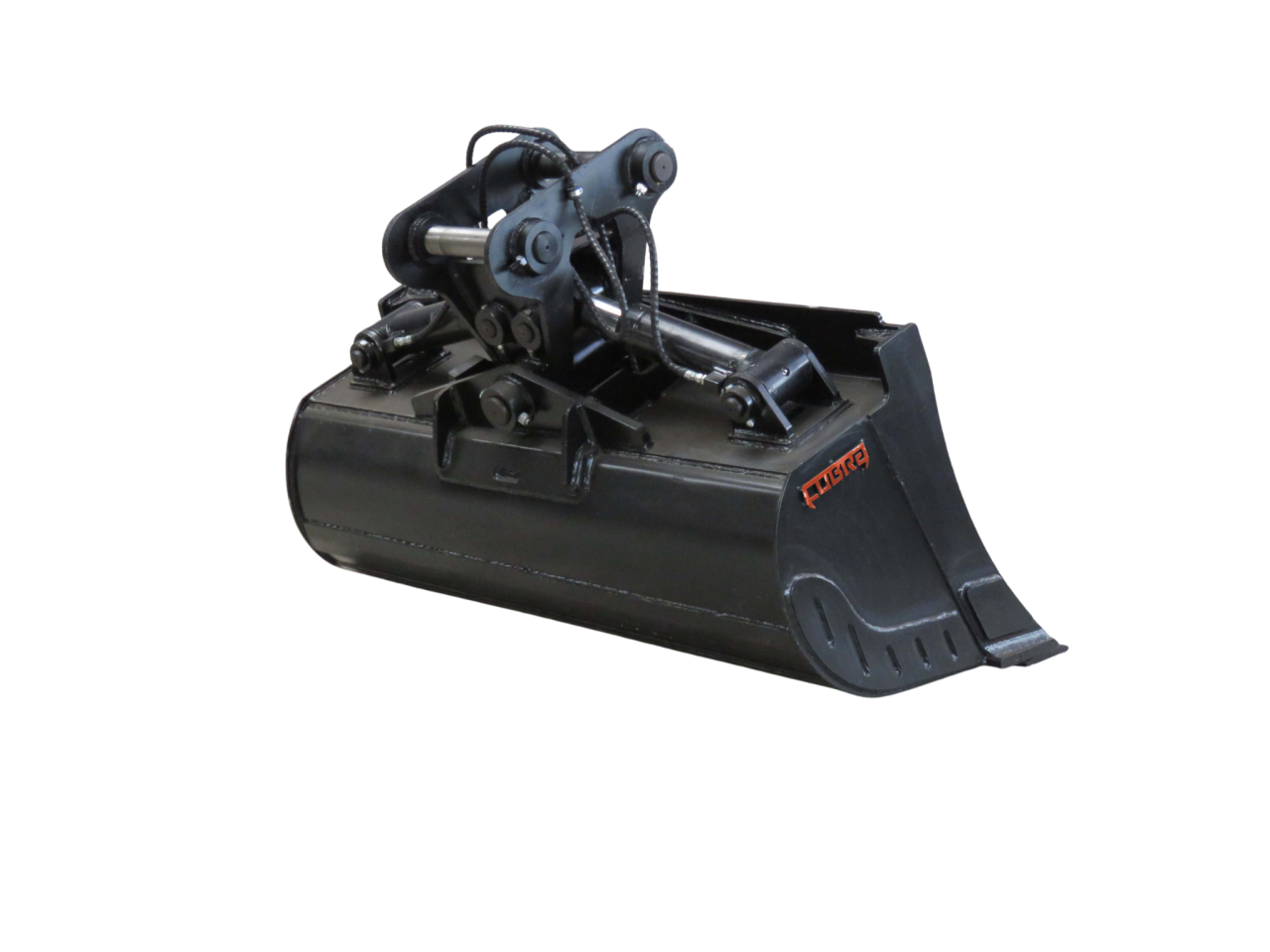

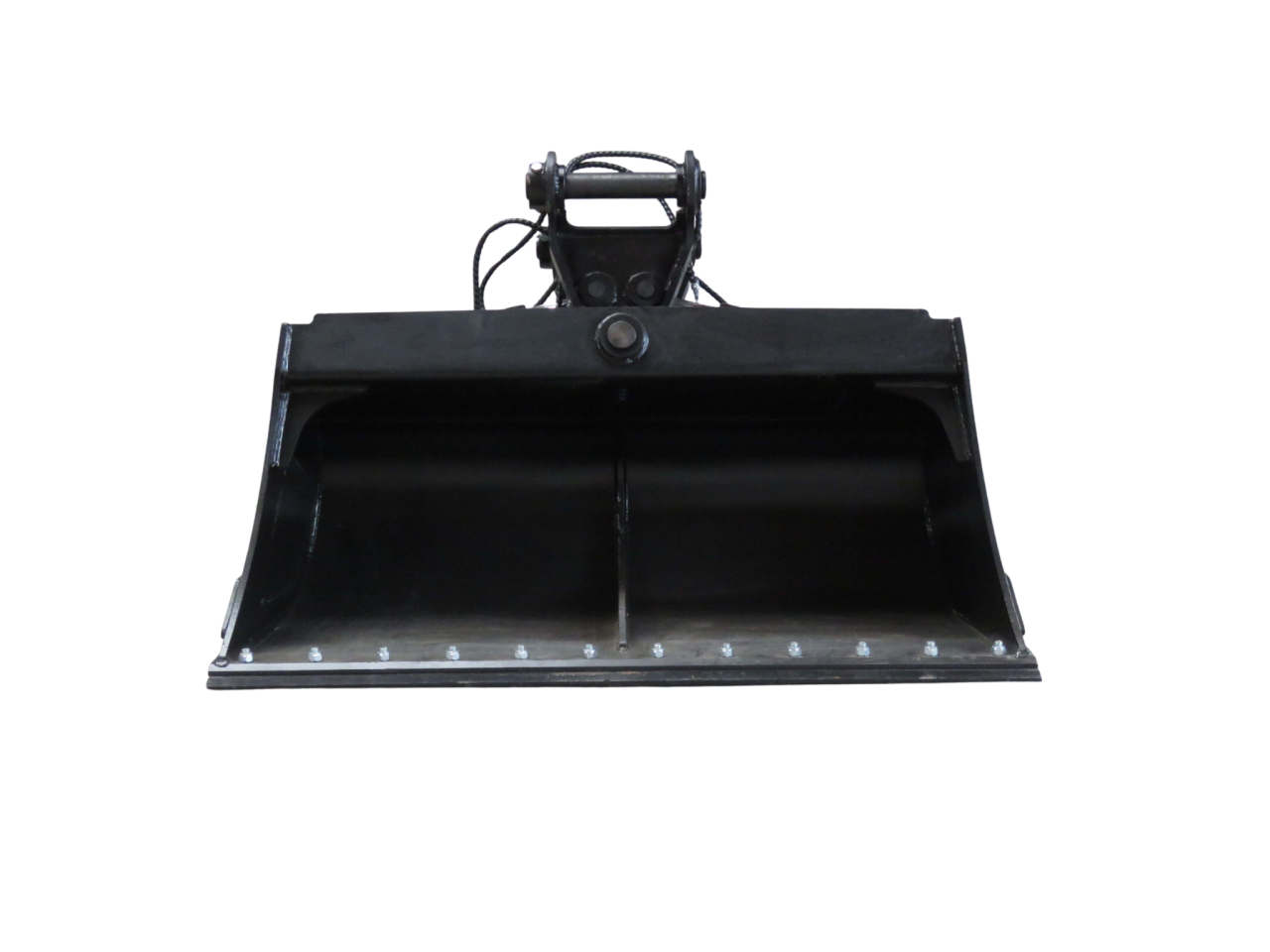

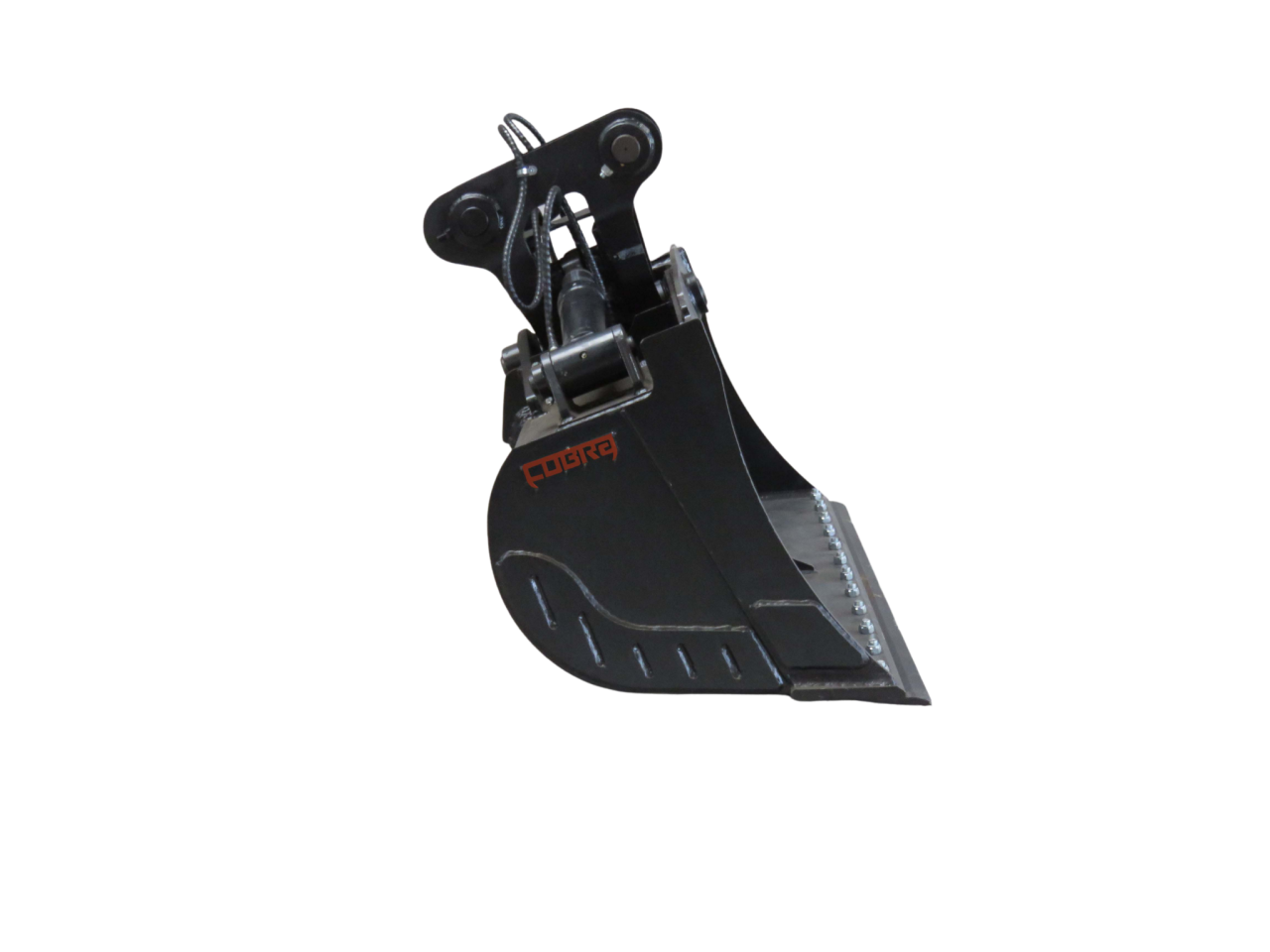

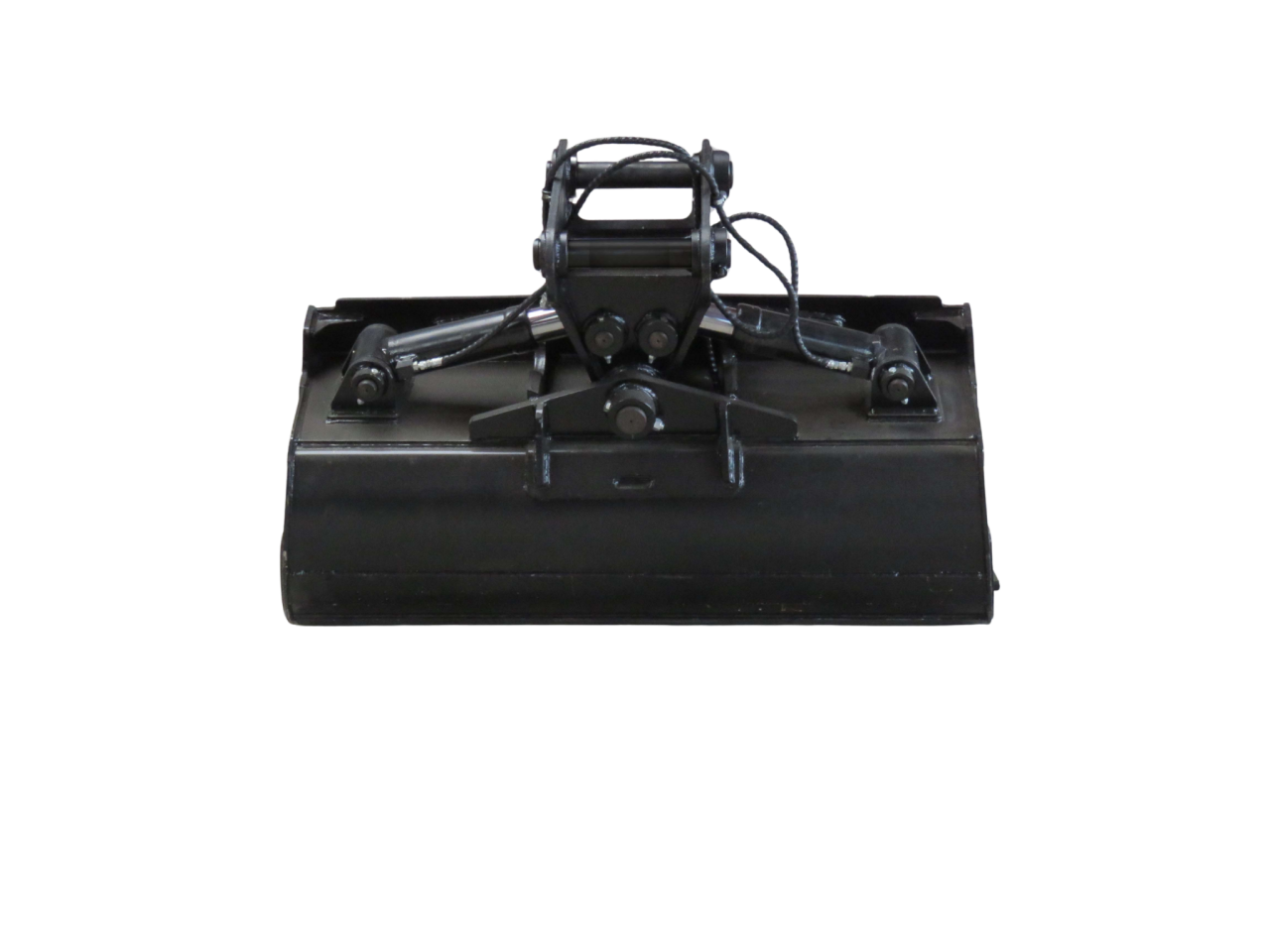

Gallery
Specifications
Please note that the specifications of our products are subject to change without notice, as we continuously strive to improve their performance and quality.
| Carrier Machine | Width (mm) | Weight (kg) | Depth (mm) | Opening (mm) | Bolt-on Cutting Edge | Flush Capacity (m3) | Heaped Capacity (m3) | Max Pressure (MPA) |
Max Flow |
|---|---|---|---|---|---|---|---|---|---|
| 1-2.9T | 1000 | 118 | 250 | 365 | ✘ | 20 | 14-19 | ||
| 3-4T | 1200 | 167 | 320 | 430 | ✘ | 20 | 14-19 | ||
| 4-6T | 1450 | 325 | 400 | 525 | ✘ | ||||
| 6-9T | 1600 | 375 | 570 | 590 | ✓ | ||||
| 10-16T | 1800 | 810 | 575 | 780 | ✓ | 25-30 | 35-40 | ||
| 16-25T | 2000 | 1187 | 680 | 930 | ✓ | 25-31 | 50-60 |
Contractors across New Zealand rely on Cobra for excavator attachments built to handle demanding earthmoving conditions. Every Cobra Tilt Bucket is custom-hitched to suit your excavator, ensuring accurate fitment and smooth operation on site.
Featuring a heavy-duty twin ram design with 45 degrees of tilt in either direction, the Cobra Tilt Bucket is ideal for batter work, contouring, ditch shaping, landscaping, and final trim applications. The tapered bucket profile improves material release in sticky conditions while helping operators work efficiently around tight areas and obstructions.
Built using a durable HB350 steel body with HB400 cutting edges and reinforced wear areas, Cobra Tilt Buckets are designed for strength, reliability, and long-term performance in New Zealand conditions. Backed by a 36-month warranty and free freight to Mainfreight depots and other selected depots nationwide.
