Cobra Curved Root Rake

Cobra Curved Root Rake

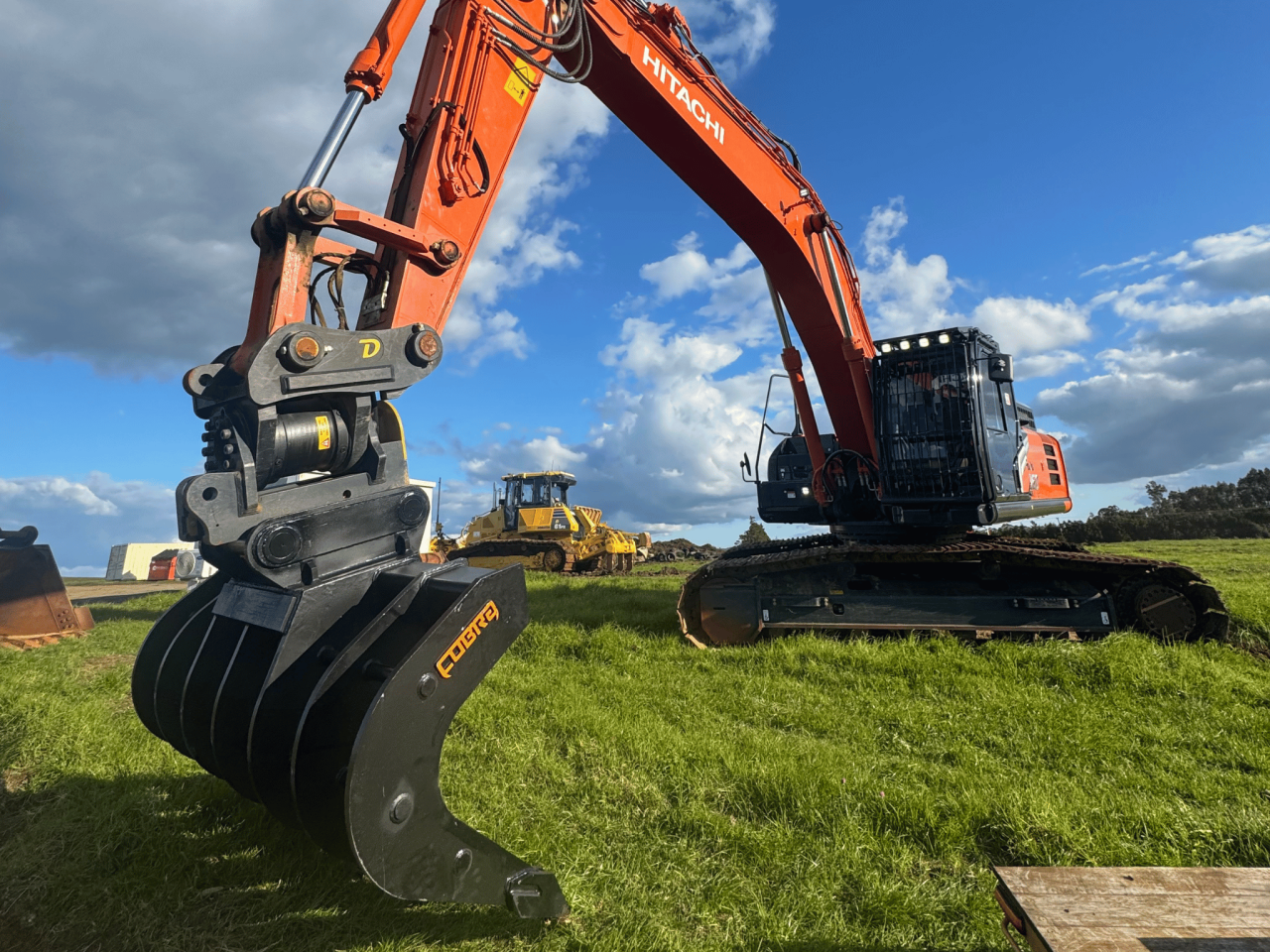

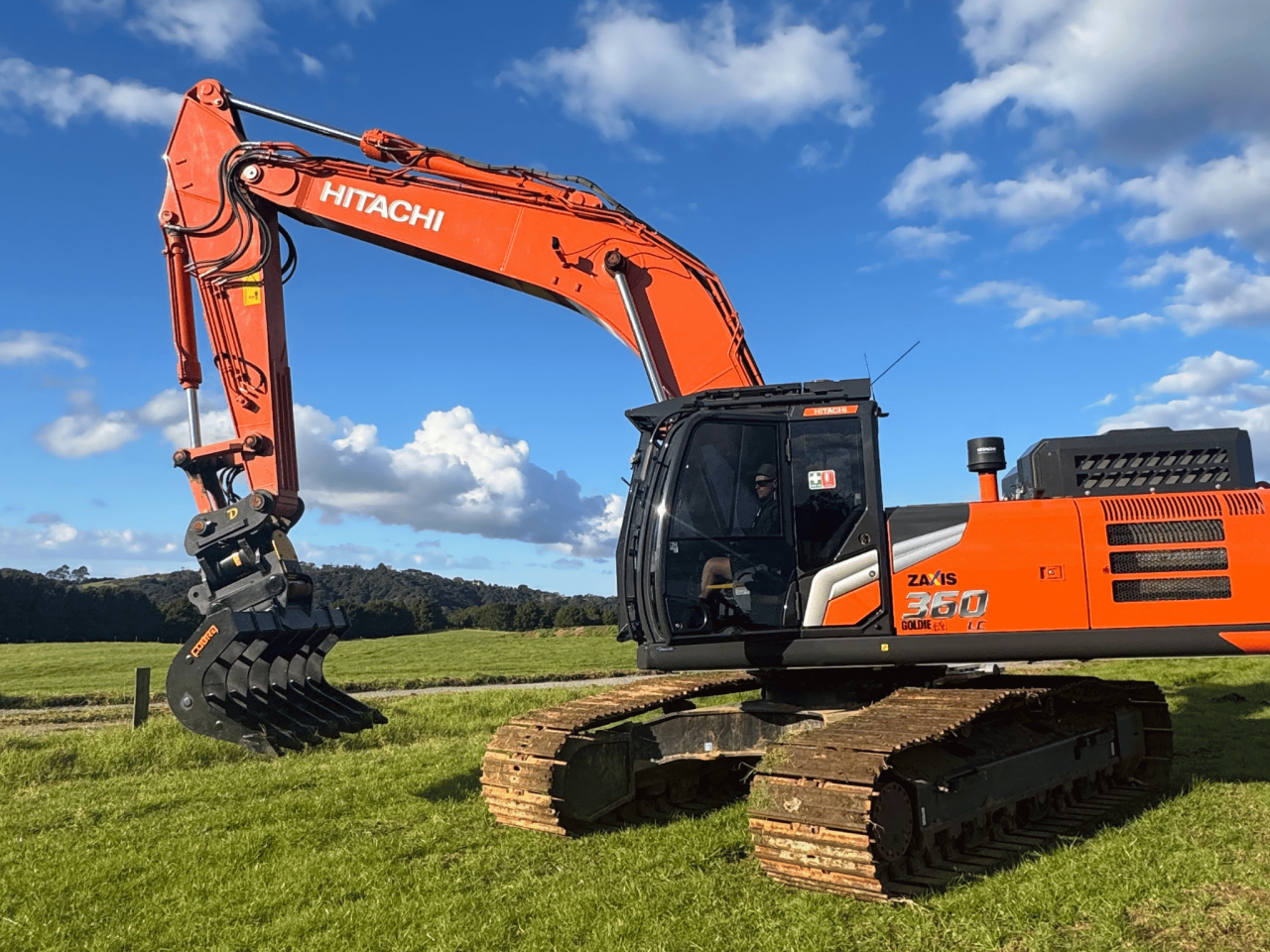

  • Our curved root rakes are available for machines from 1.5 tonne right up to 35 tonne.
  • The curved design is perfect for land clearing, screening rock and tree work.
  • Designed to handle the uneven strain from large trees



Features

  • Double Pronged Tips

    HB400 steel double pronged wear resistant tips to extend the life of the rake

  • Medium Tensile Body

    350 grade steel throughout the body

  • Rigid Design

    Handles the uneven stress of large trees and rocks

Cobra Curved Root Rake

Benefits

  • Free Freight

    To nearest depot around New Zealand

  • High Strength Wear Steel

    Wear plating allows it to withstand the most demanding stresses
  • 36 Month Warranty

    Built tough, backed by a 36-month warranty
  • Reinforced Design

    Proven strong design to handle the big jobs

Gallery

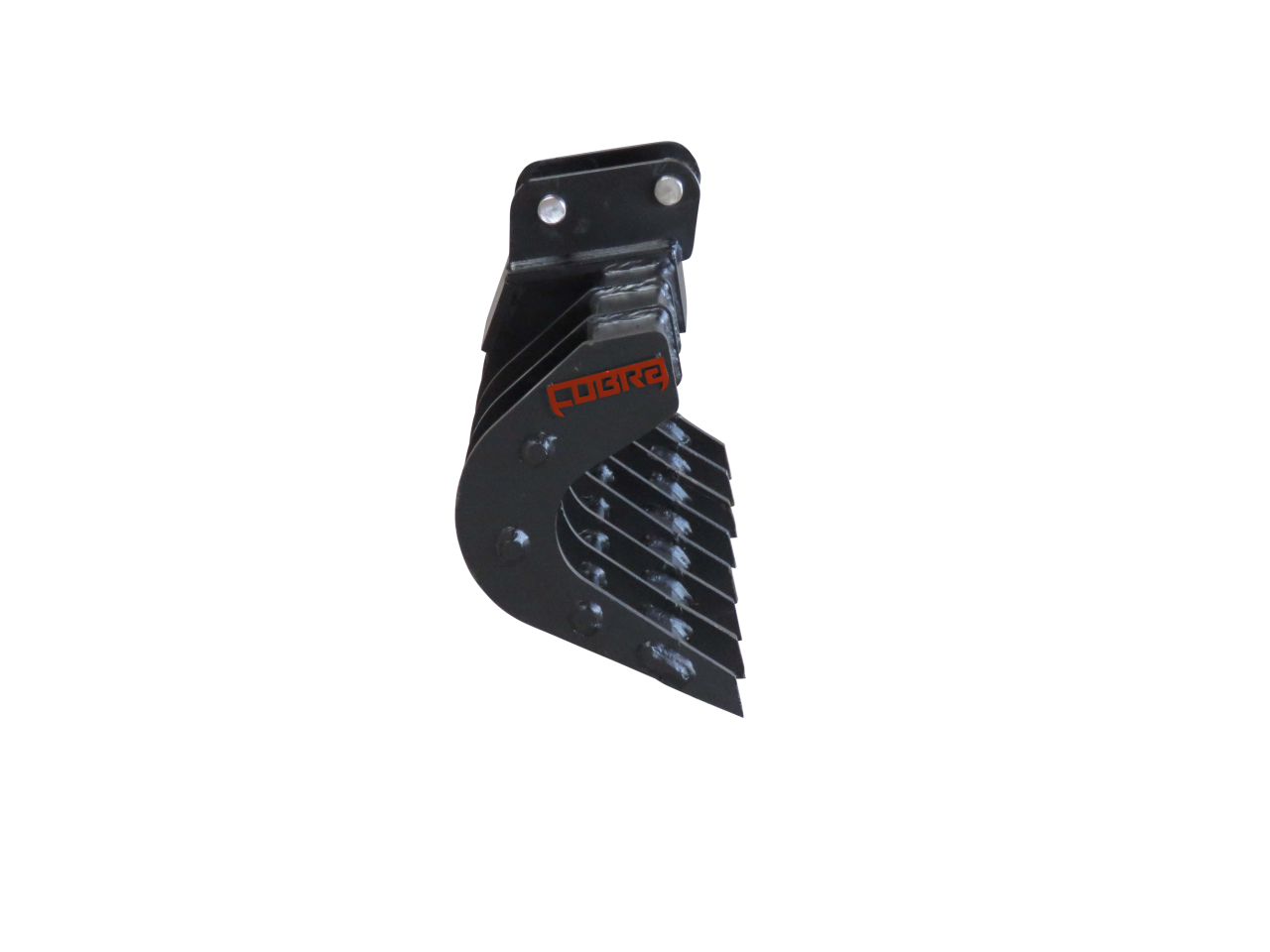

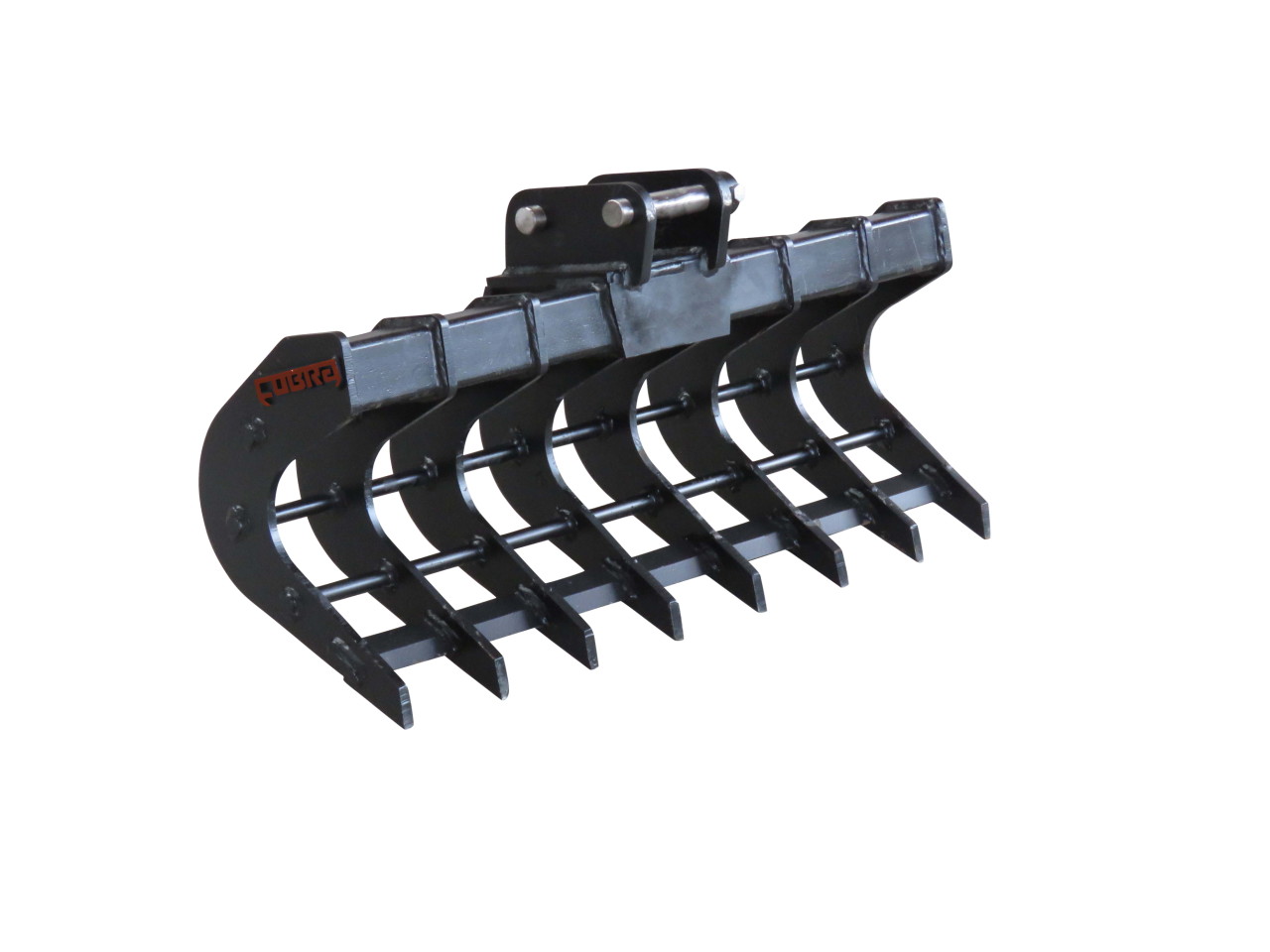

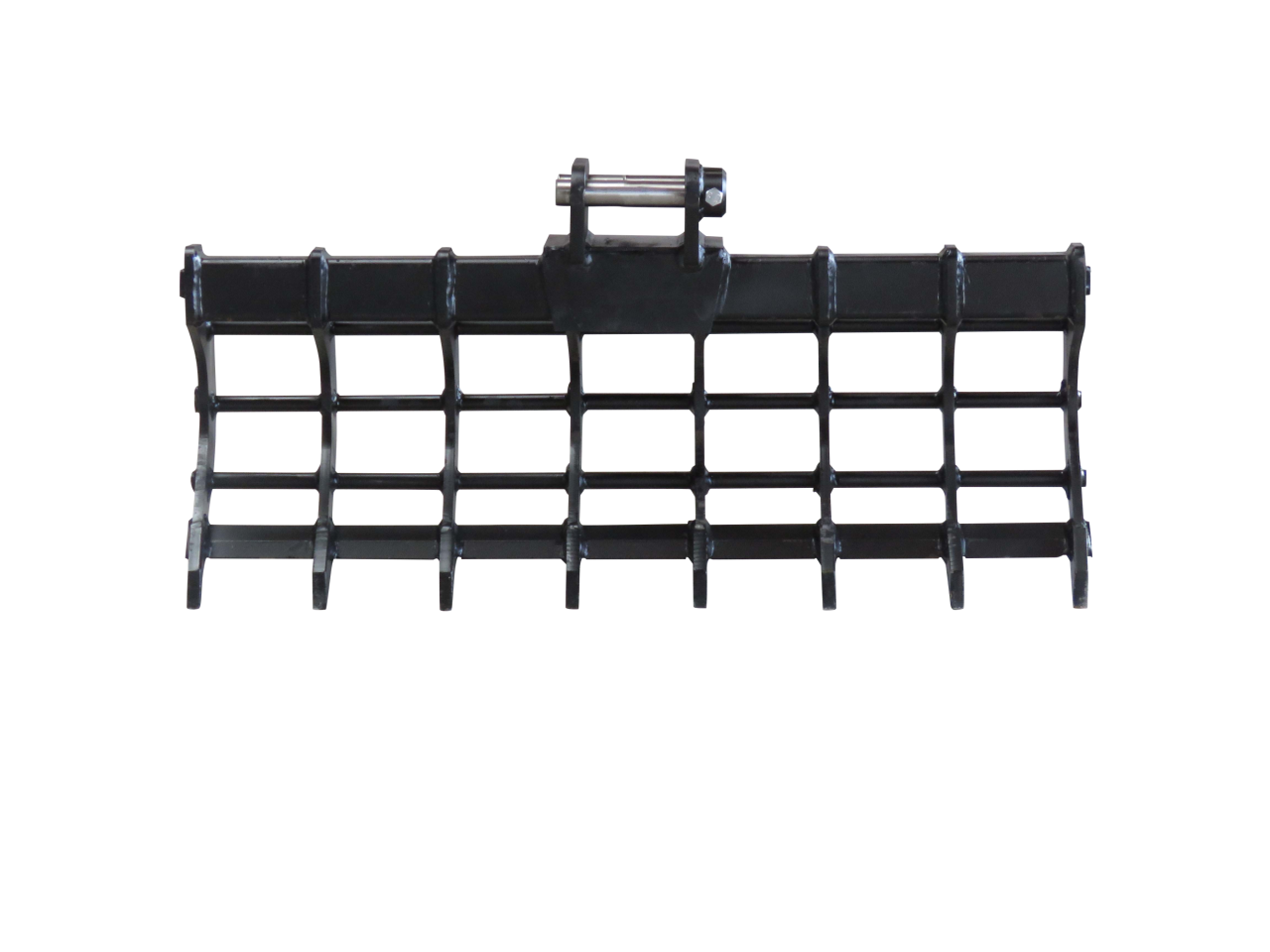

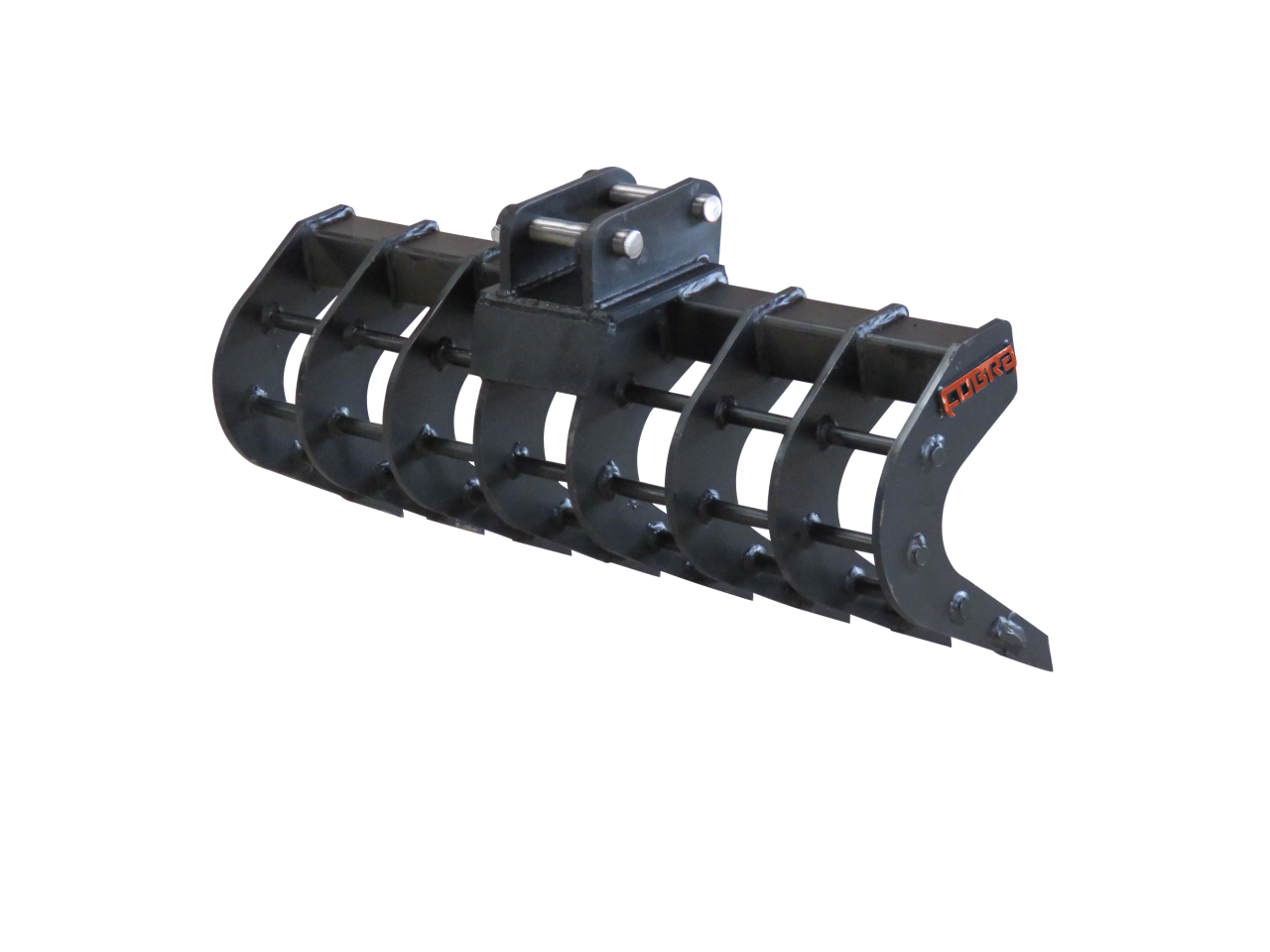

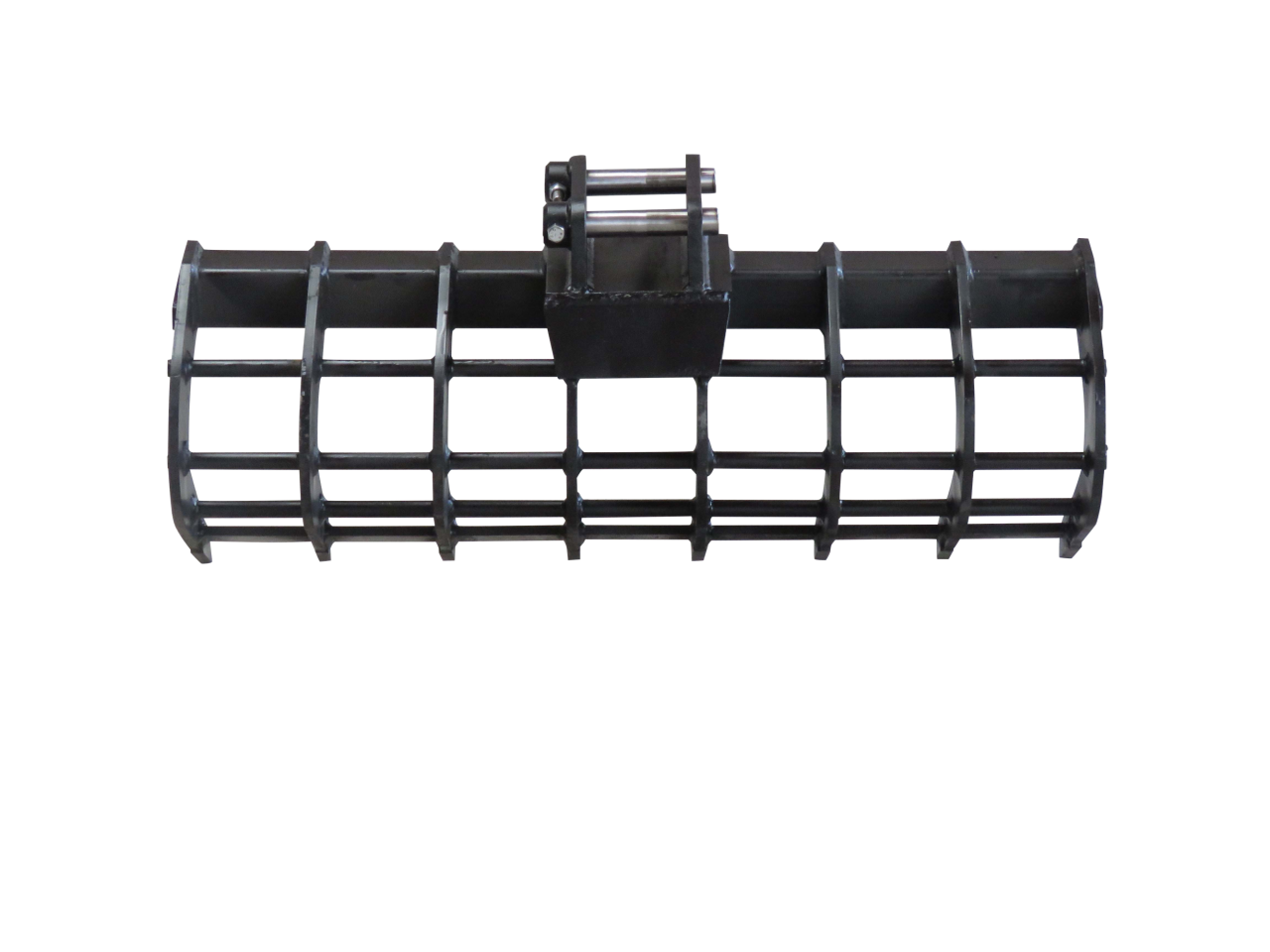

  • 1 v4.5 2.5T 1000mm Curved Root Rake FS copy 1.5 2.5T 1000mm Curved Root Rake F copy 1.5 2.5T 1000mm Curved Root Rake S copy 1.5 2.5T 1000mm Curved Root Rake RS copy 1.5 2.5T 1000mm Curved Root Rake R copy

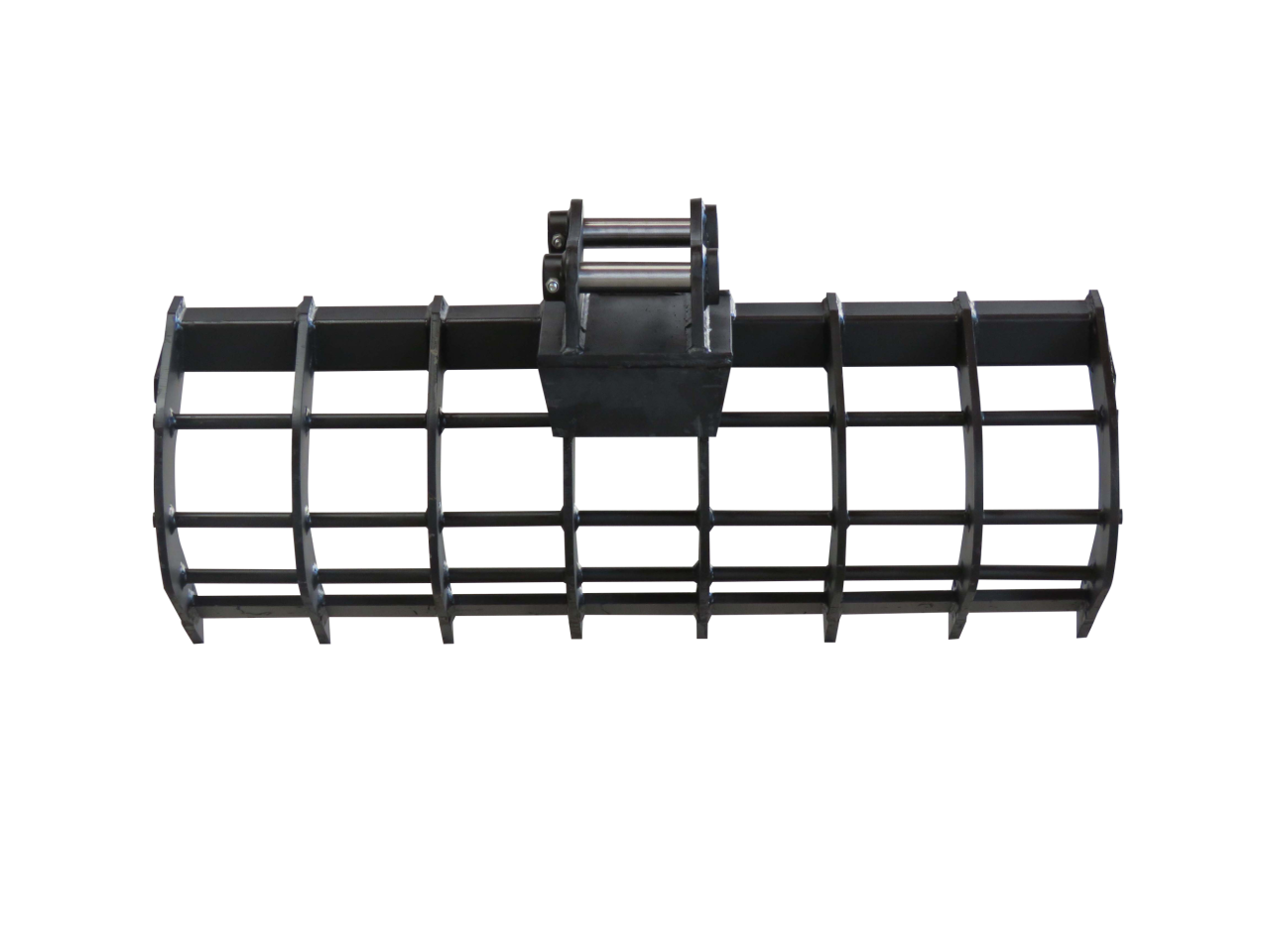

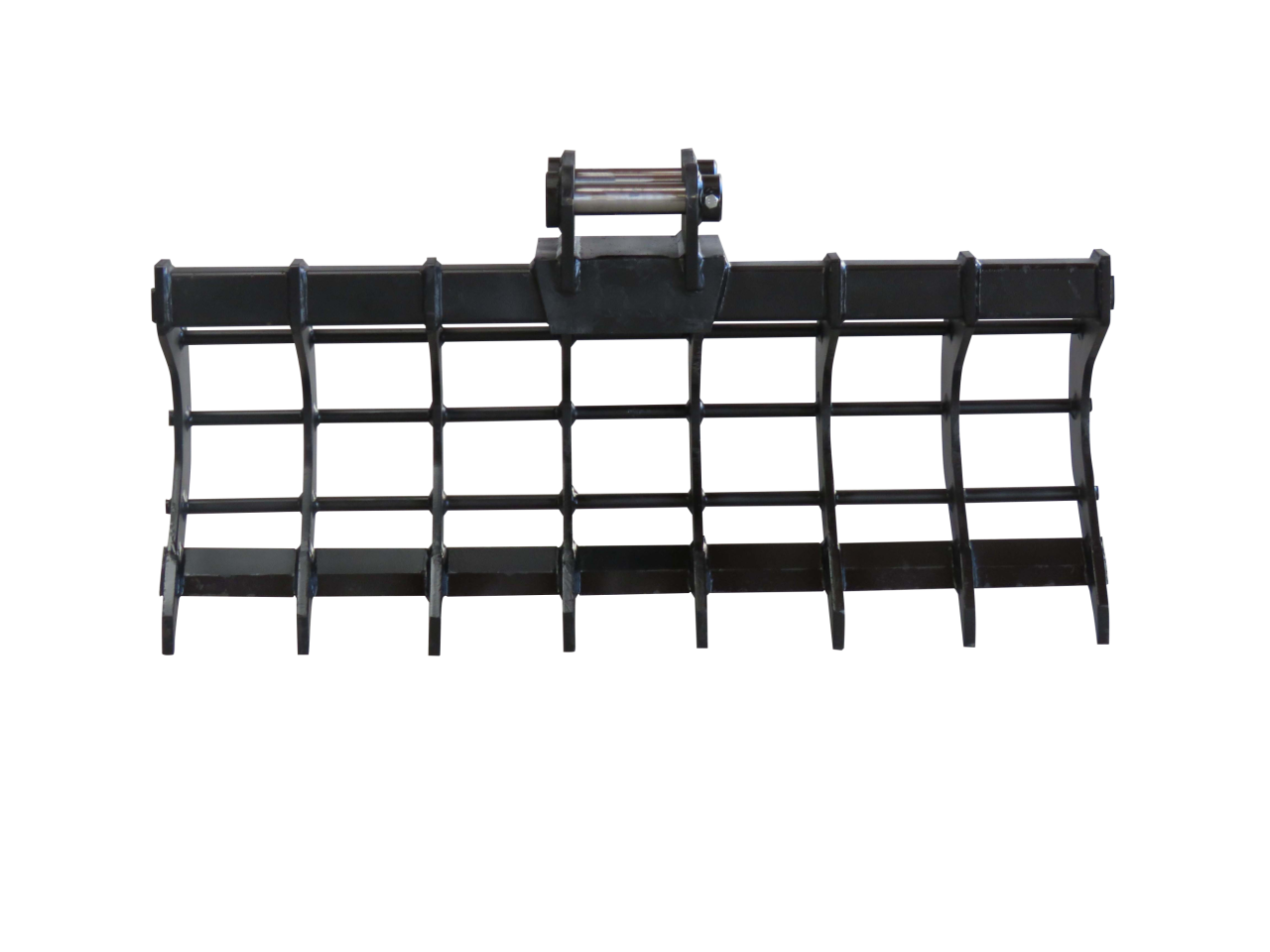

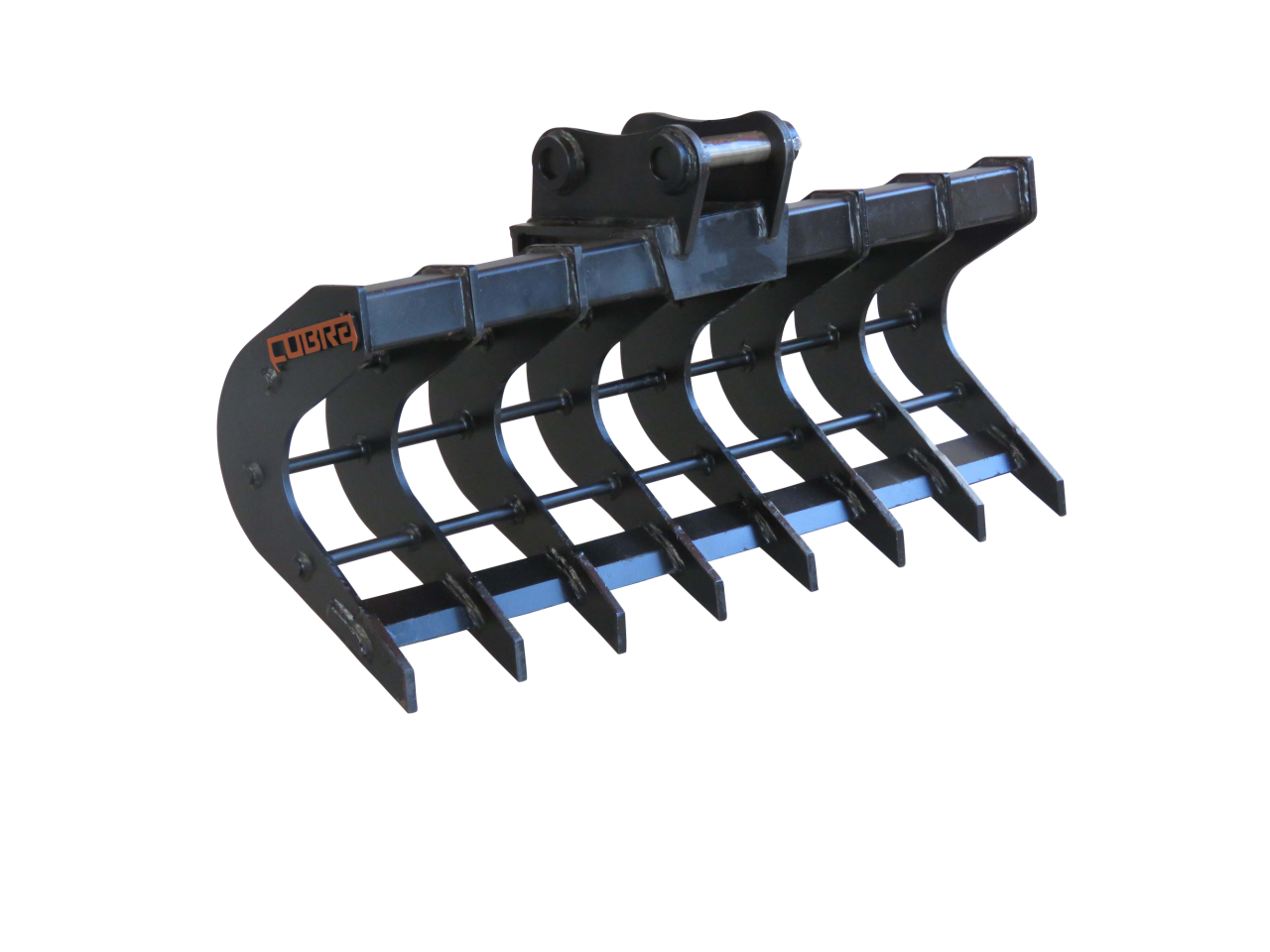

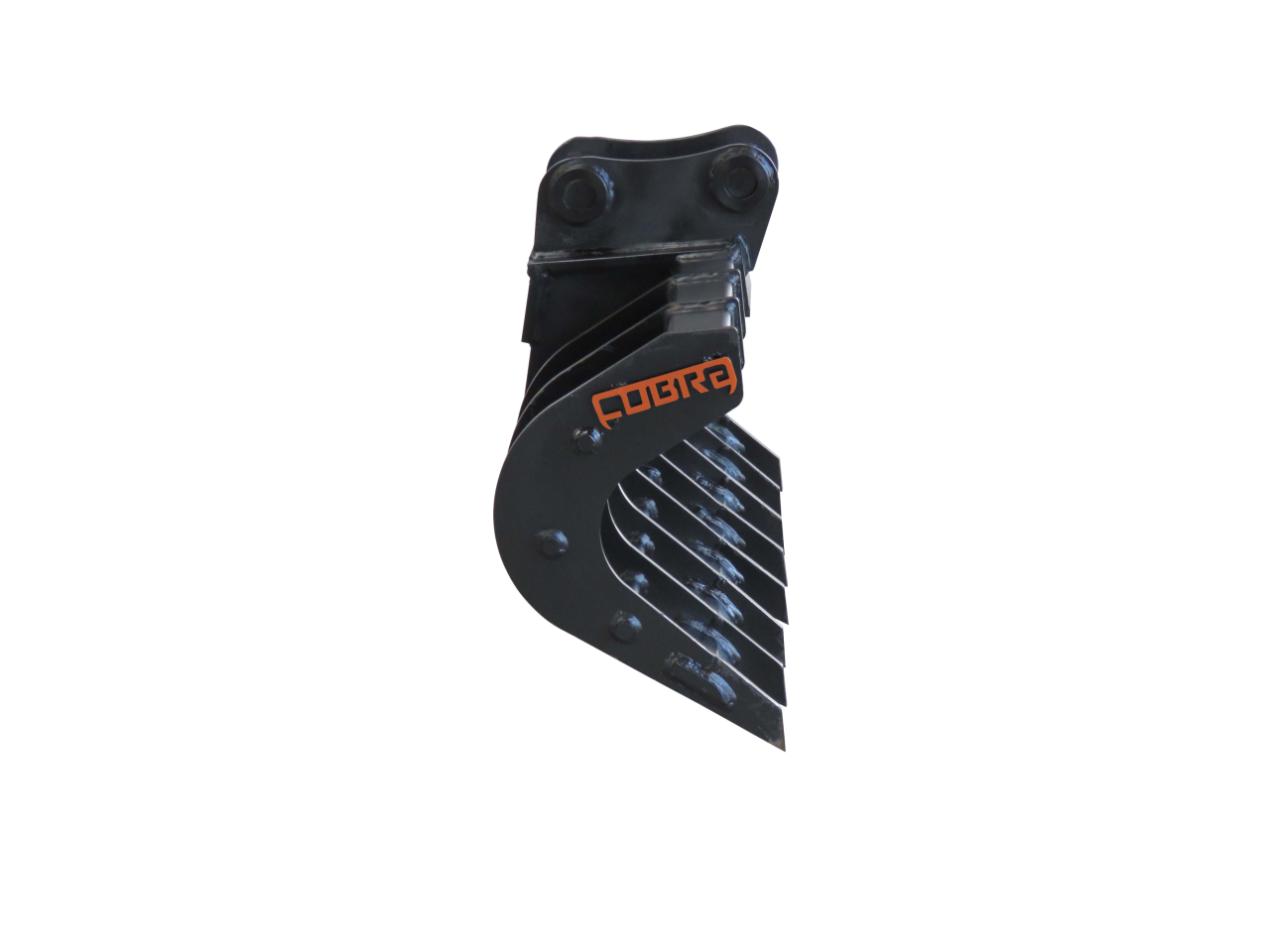

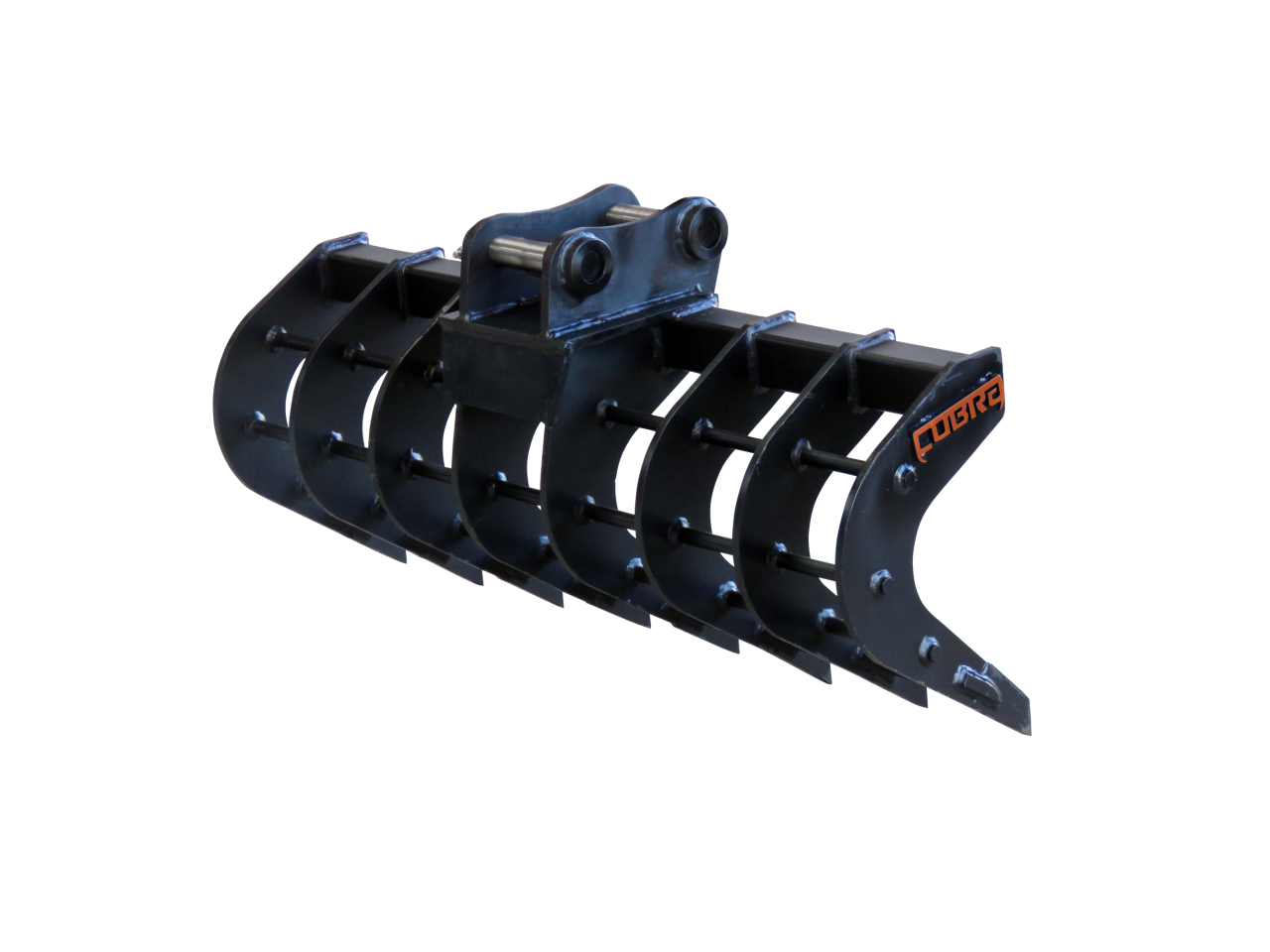

  • 2 v6.5 3.9T 1200mm Curved Root Rake FS copy 2.5 3.9T 1200mm Curved Root Rake F copy 2.5 3.9T 1200mm Curved Root Rake S copy 2.5 3.9T 1200mm Curved Root Rake RS copy 2.5 3.9T 1200mm Curved Root Rake R copy

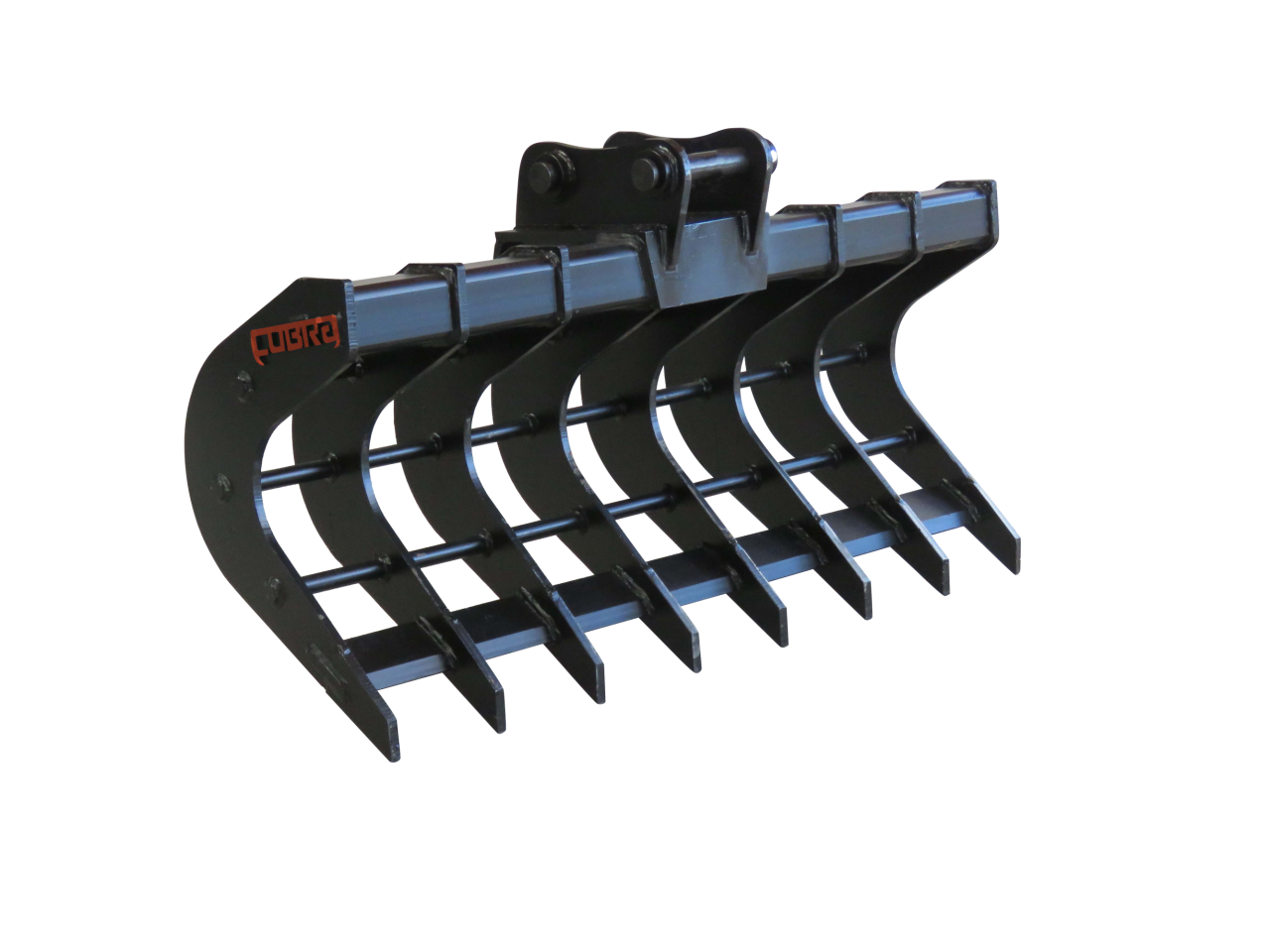

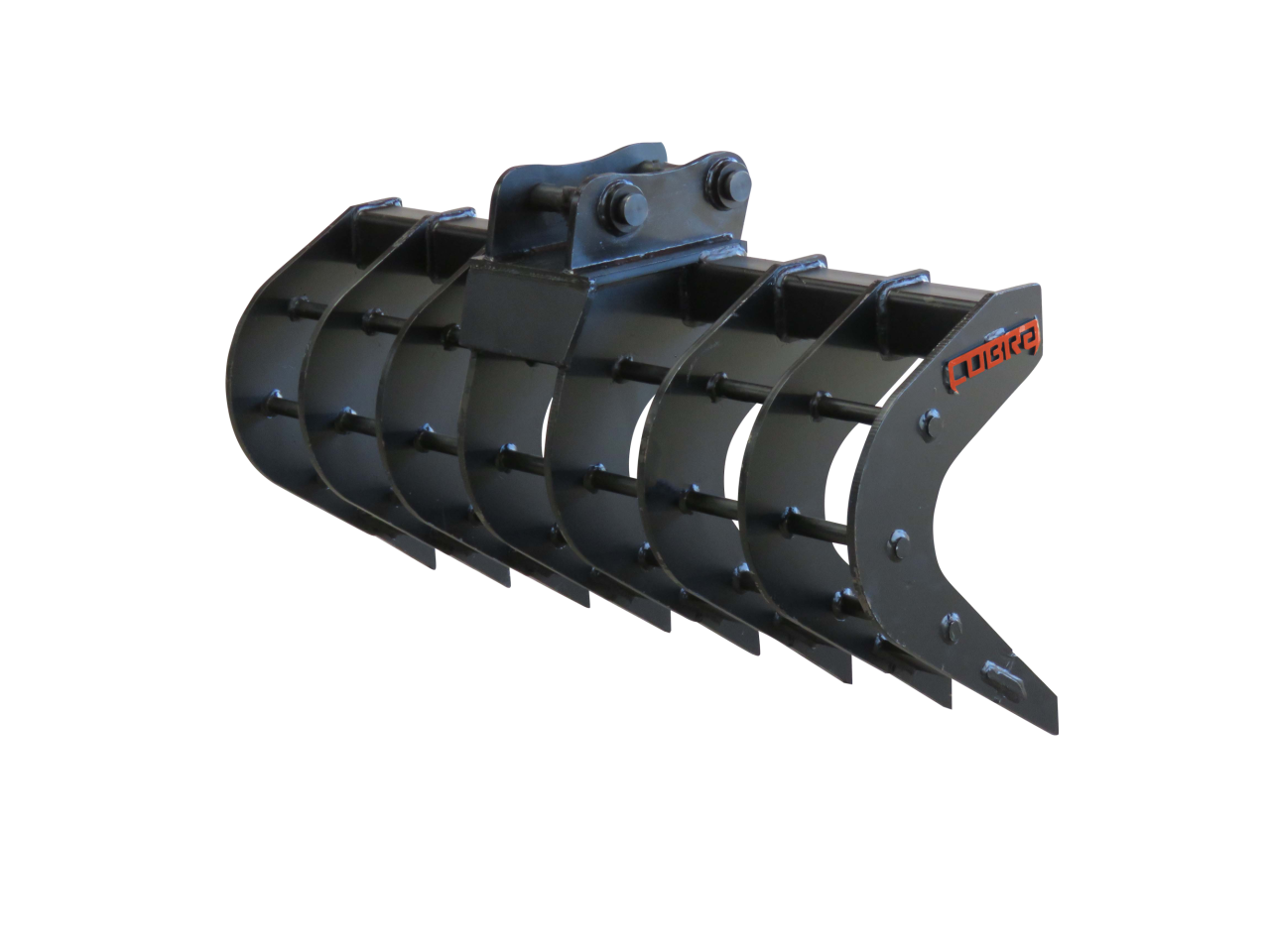

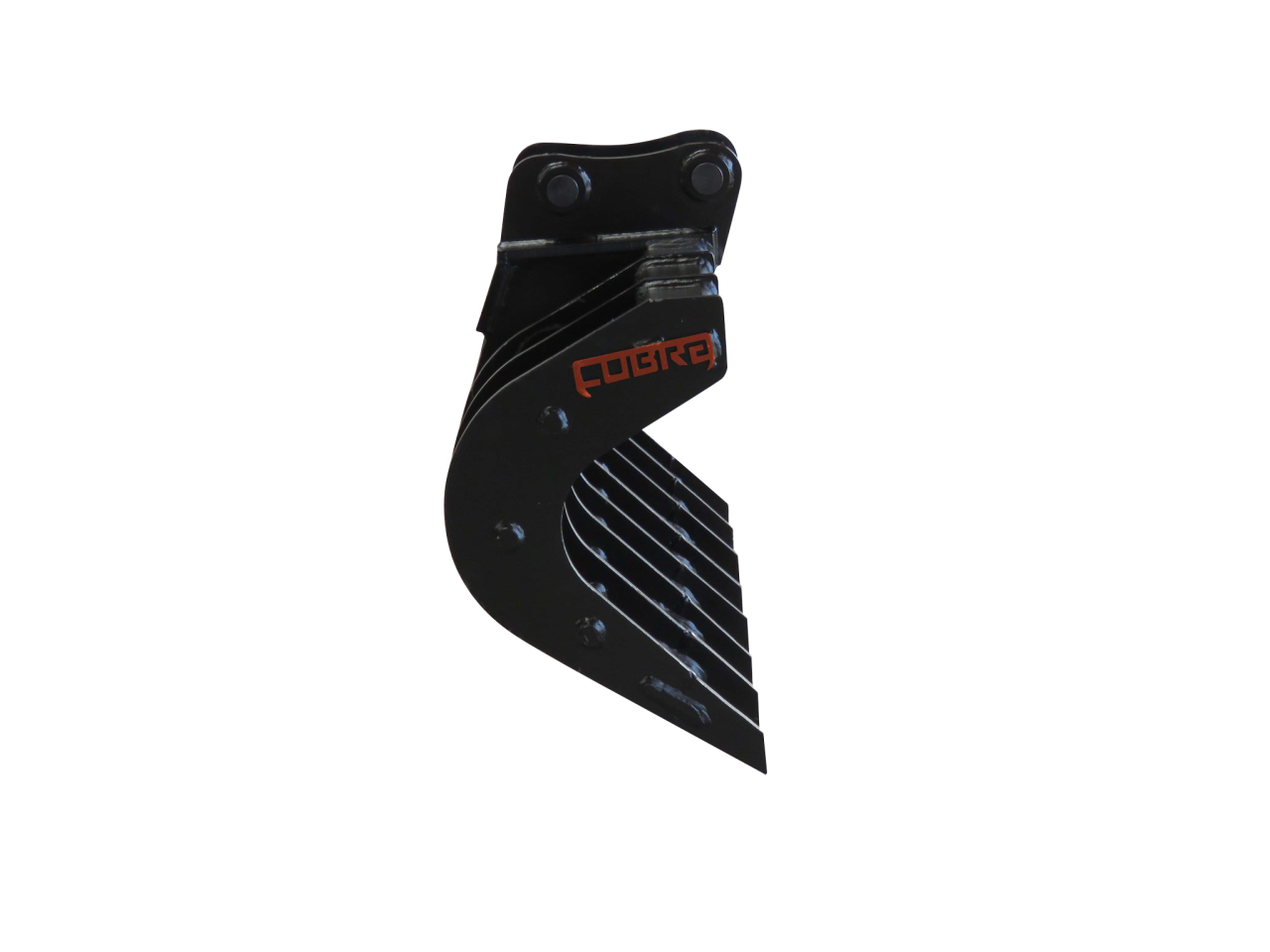

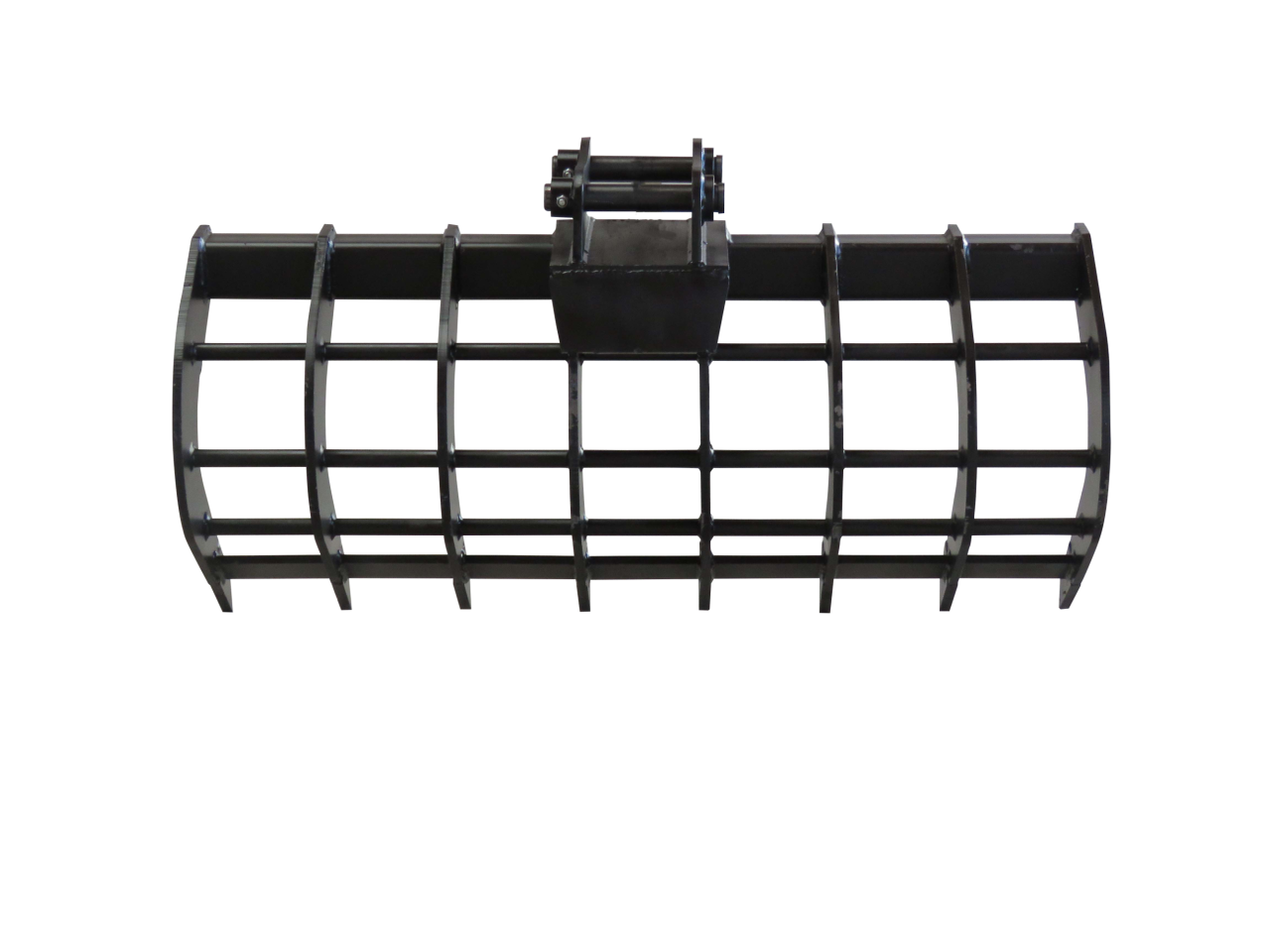

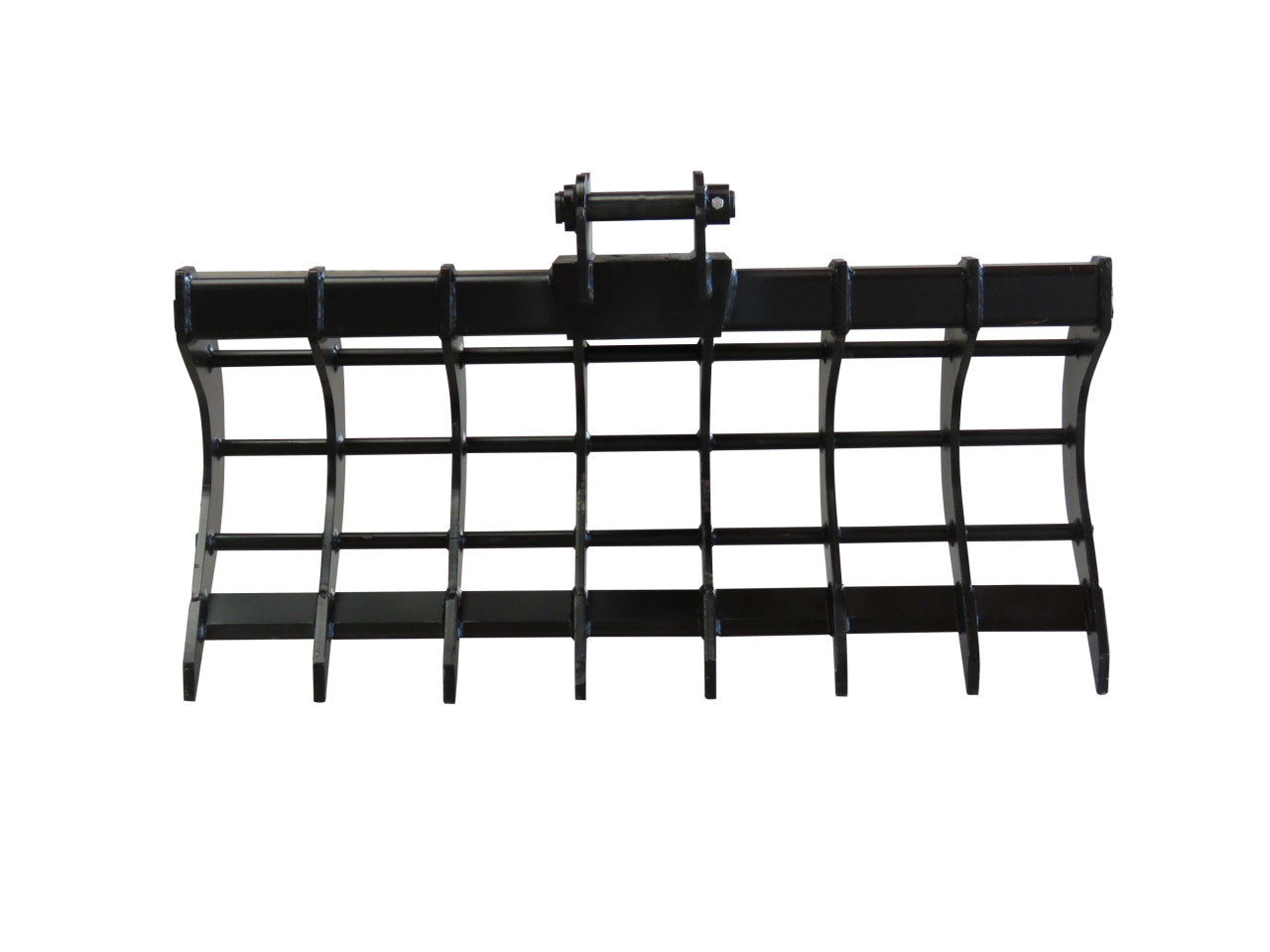

  • 4 6T 1500mm Curved Root Rake FS copy v2 4 6T 1500mm Curved Root Rake F copy 4 6T 1500mm Curved Root Rake S copy 4 6T 1500mm Curved Root Rake RS copy 4 6T 1500mm Curved Root Rake R copy

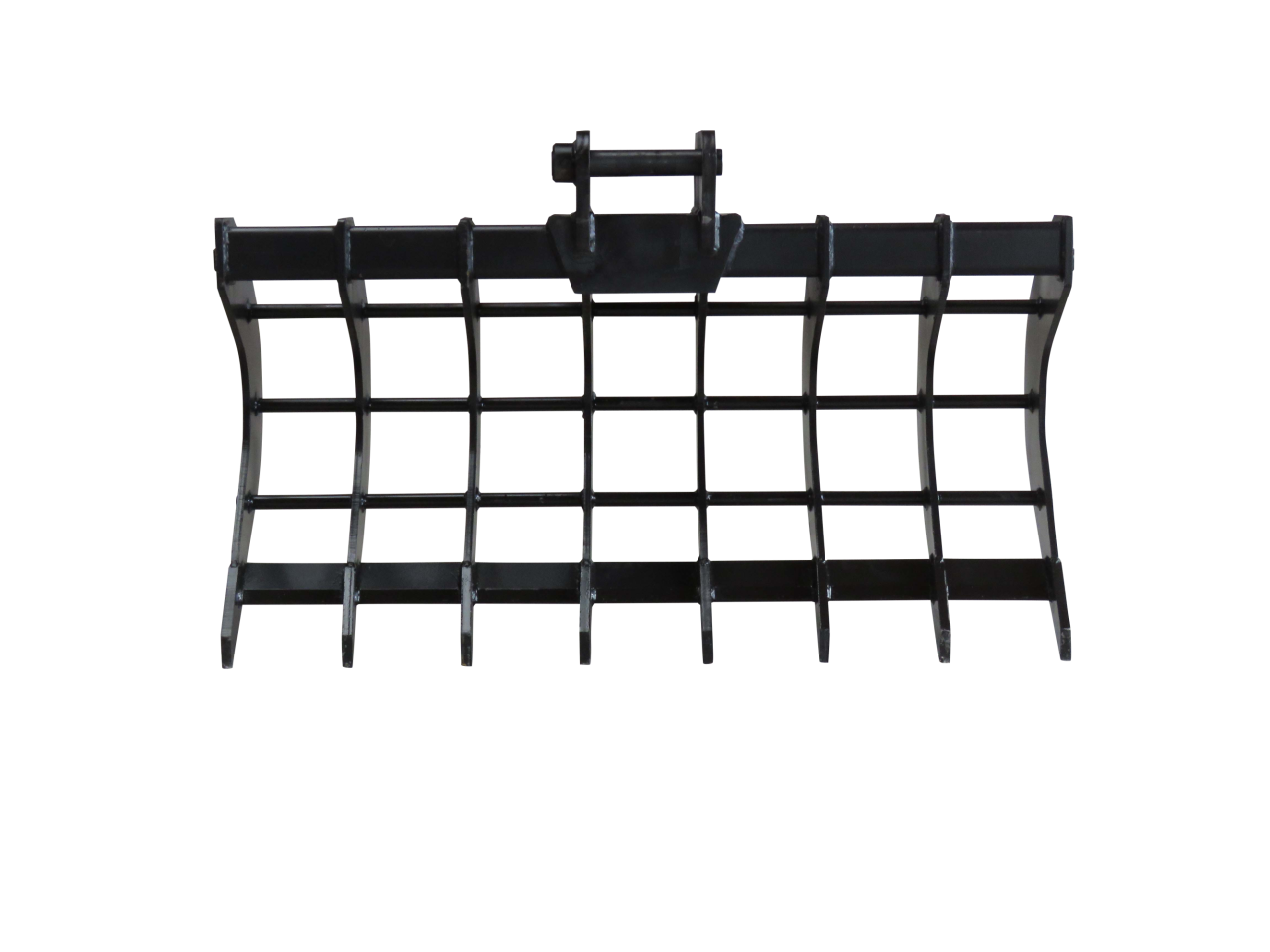

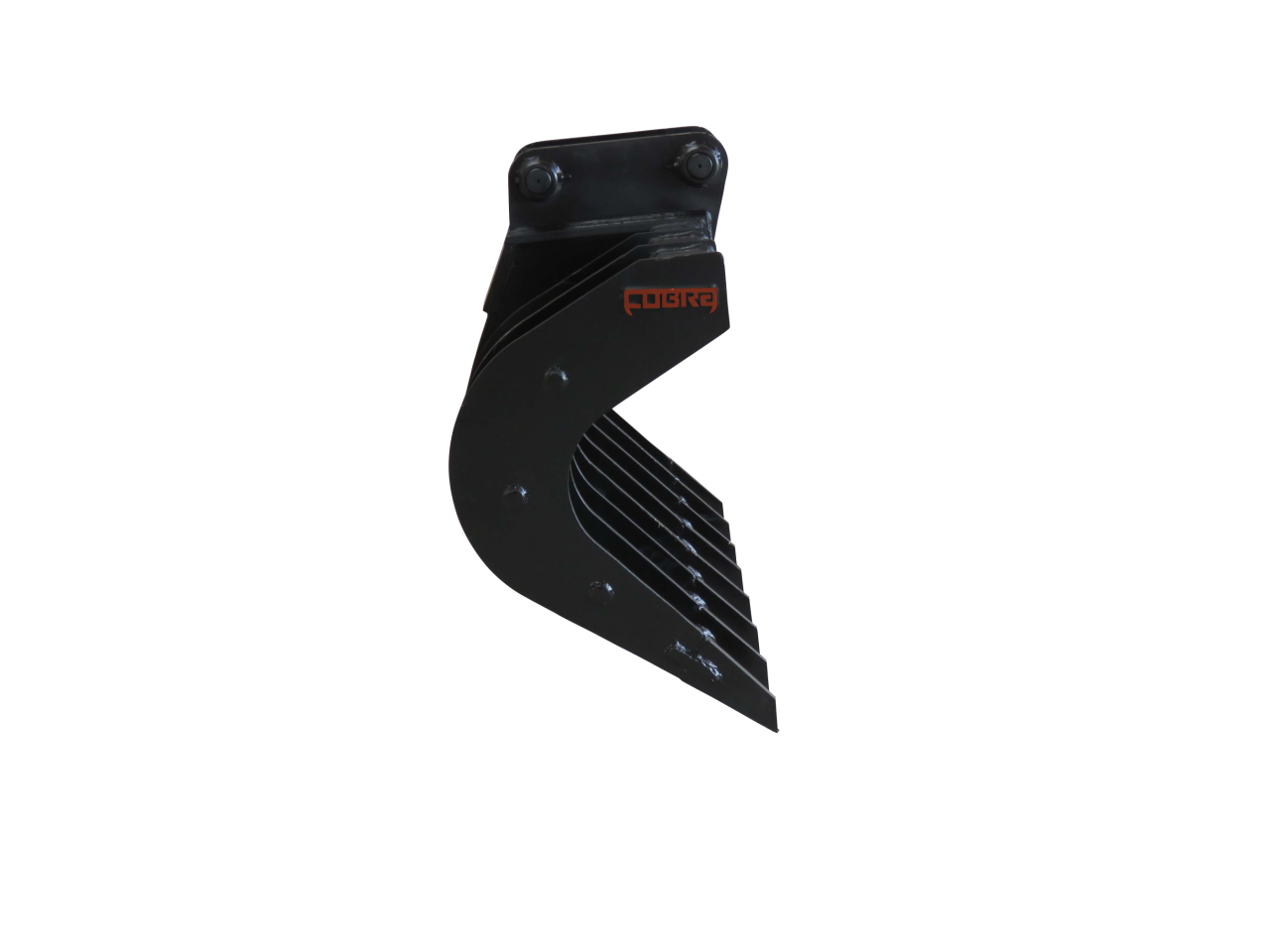

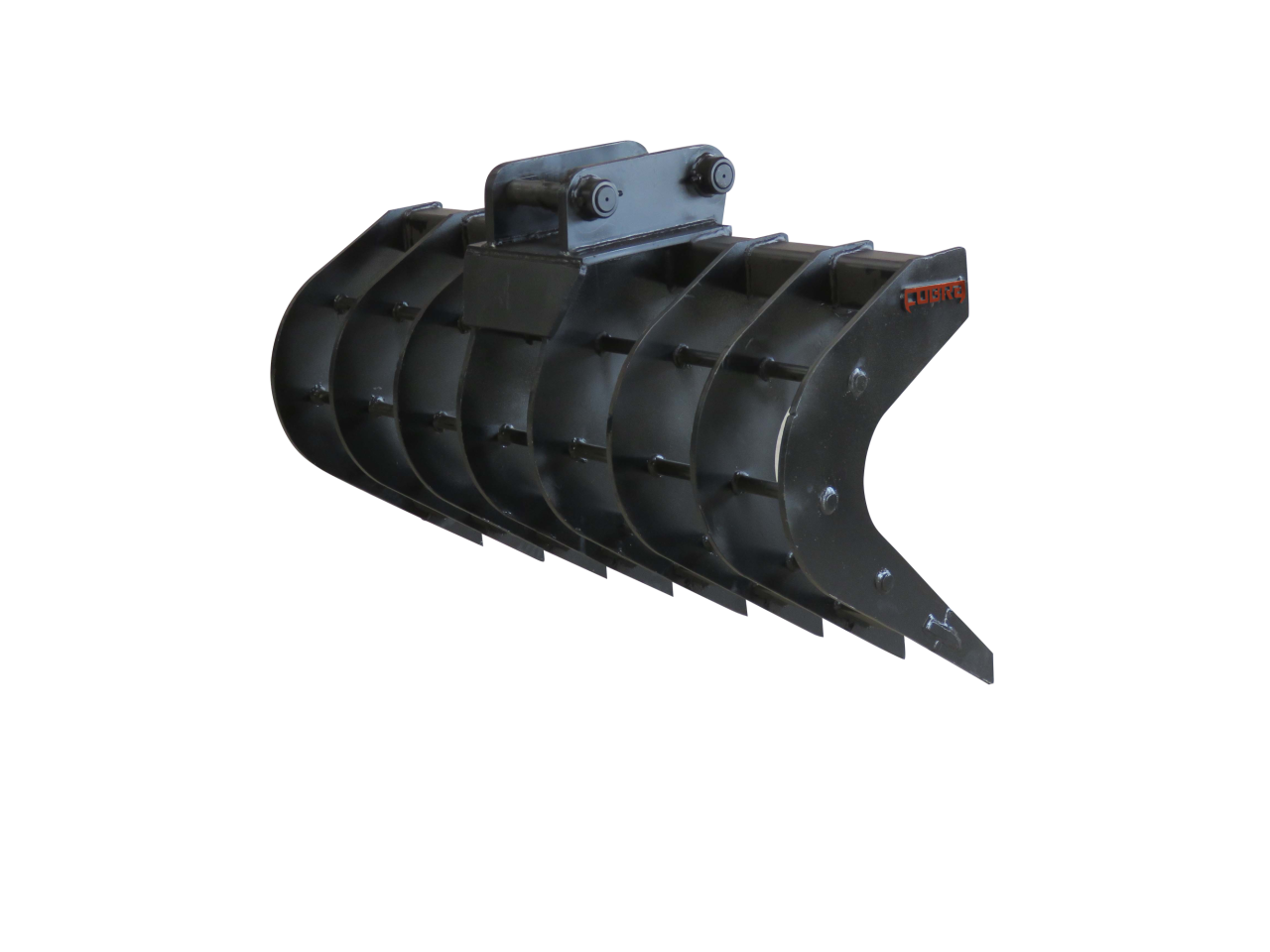

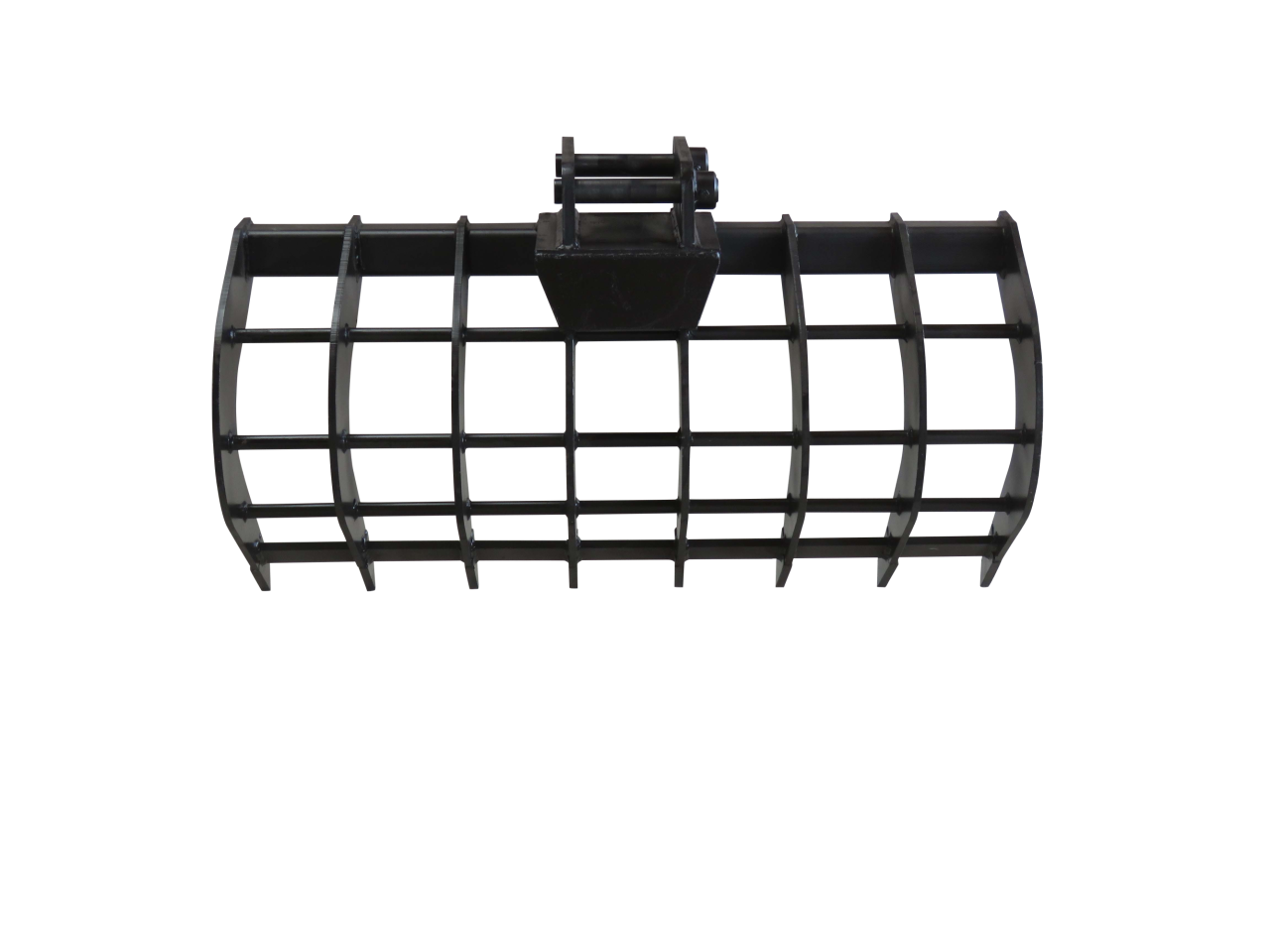

  • 6 9T 1600mm Curved Root Rake FS copy v2 6 9T 1600mm Curved Root Rake F copy 6 9T 1600mm Curved Root Rake S copy 6 9T 1600mm Curved Root Rake RS copy 6 9T 1600mm Curved Root Rake R copy

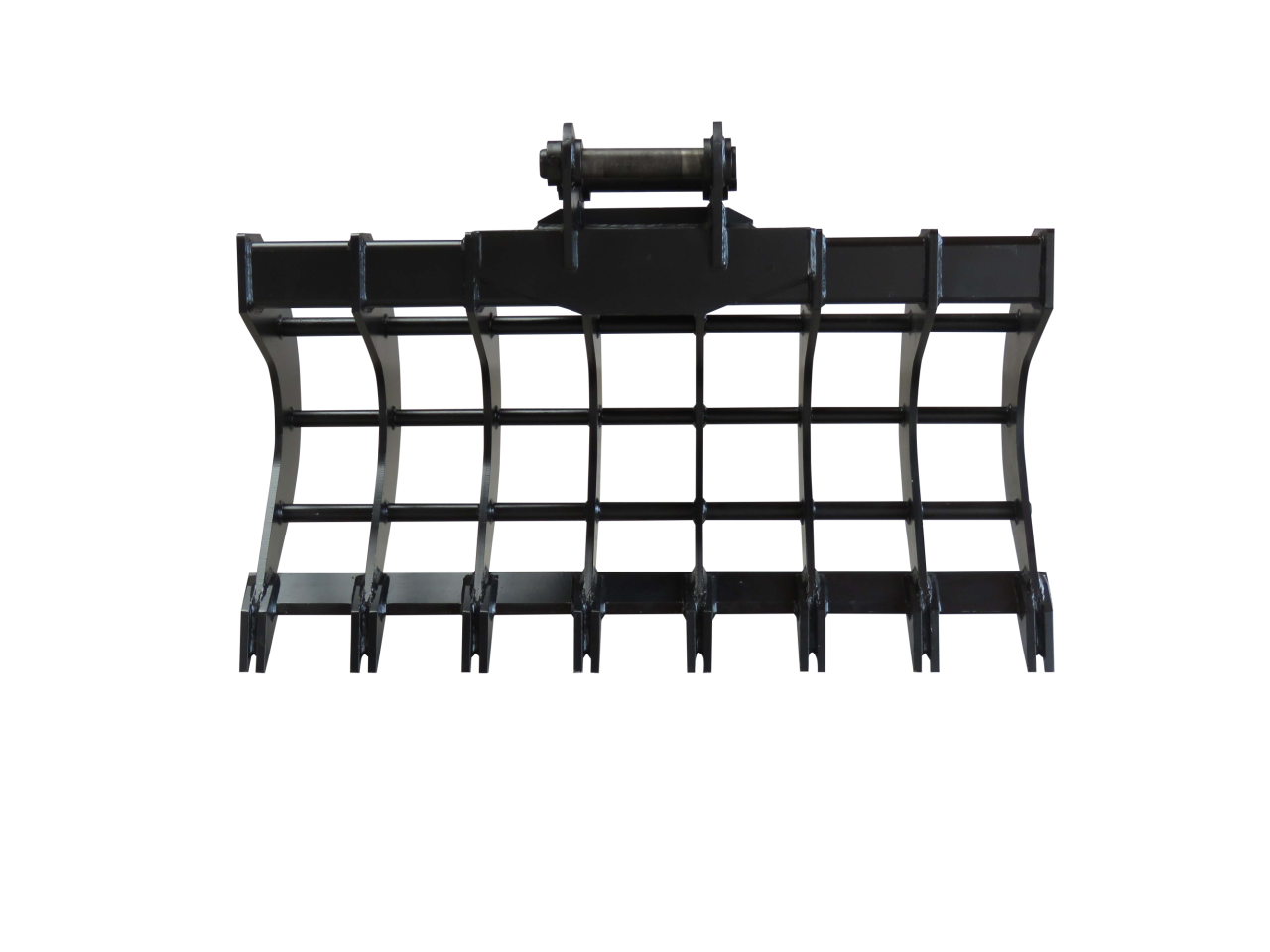

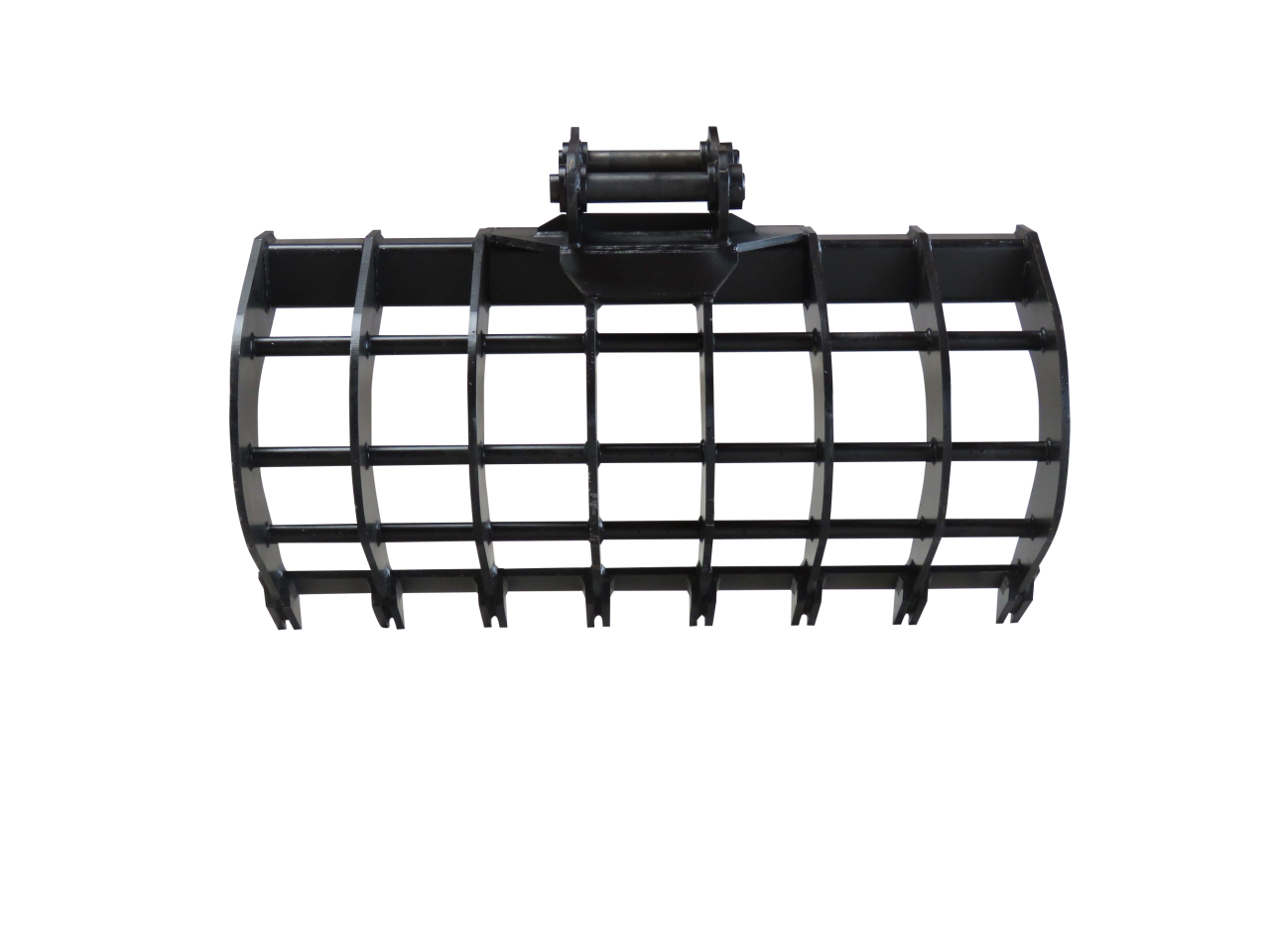

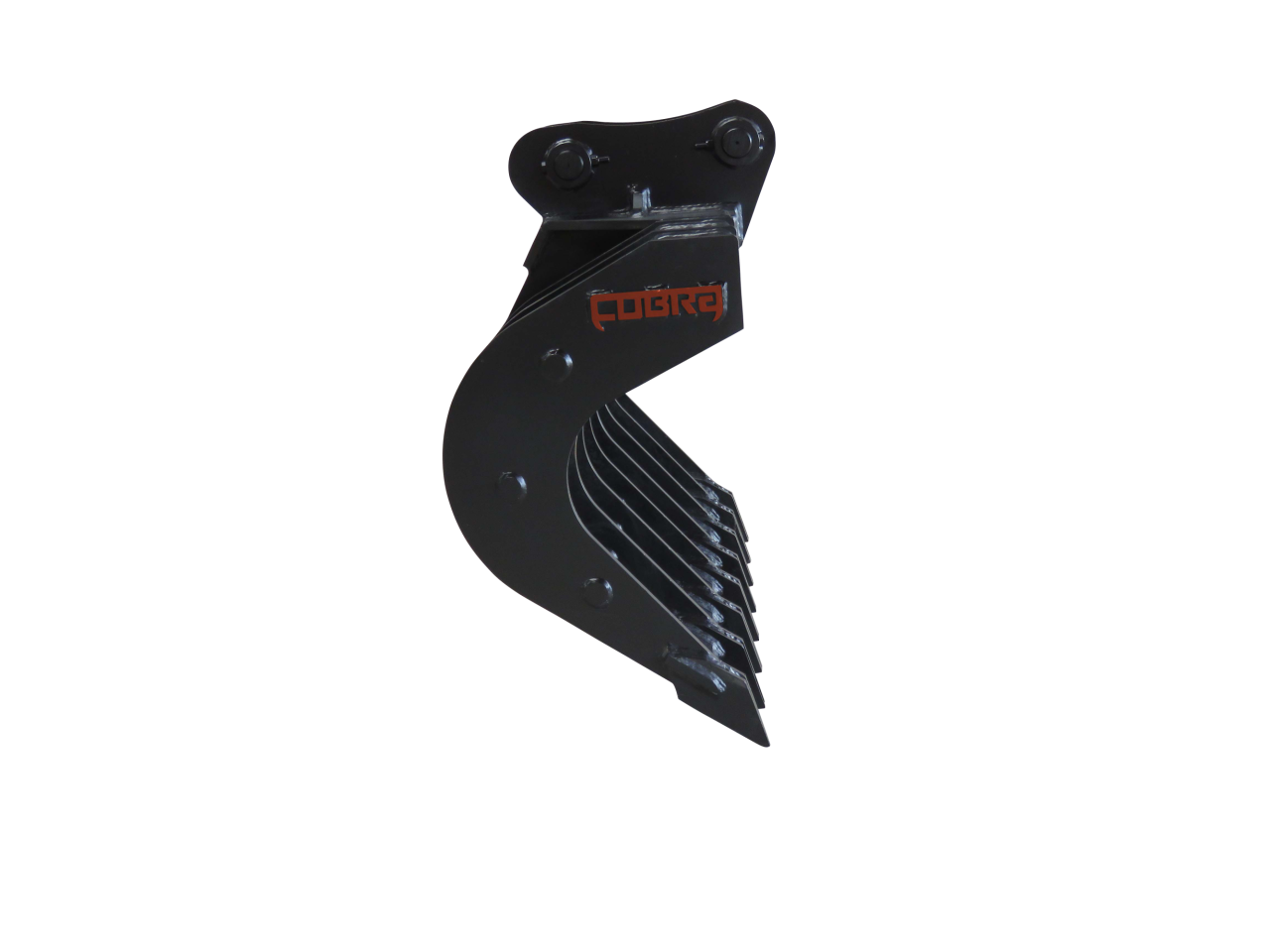

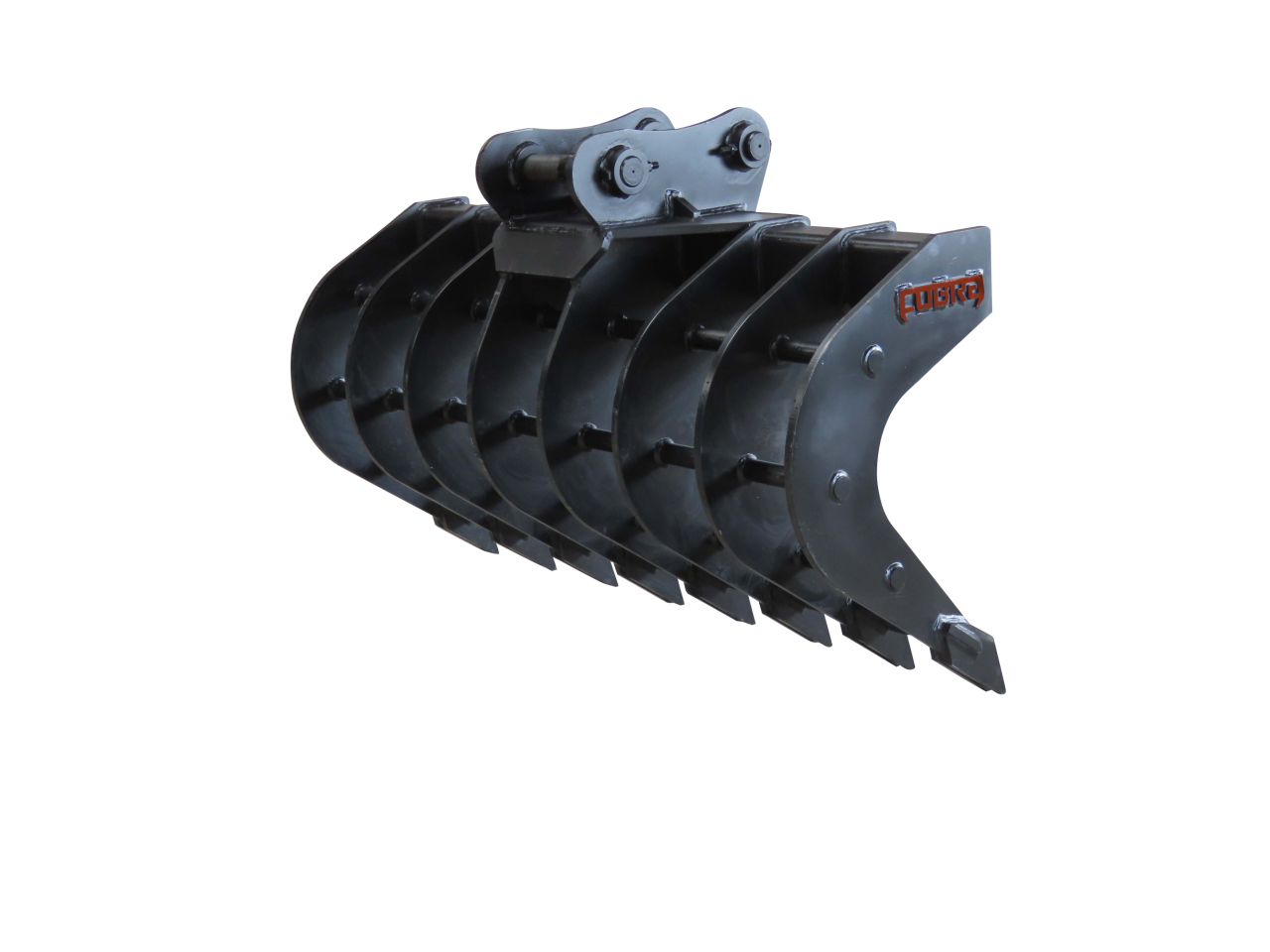

  • 12 16T 1800mm Curved Root Rake FS Recovered copy v2 12 16T 1800mm Curved Root Rake F copy 12 16T 1800mm Curved Root Rake S copy 12 16T 1800mm Curved Root Rake RS copy 12 16T 1800mm Curved Root Rake R copy

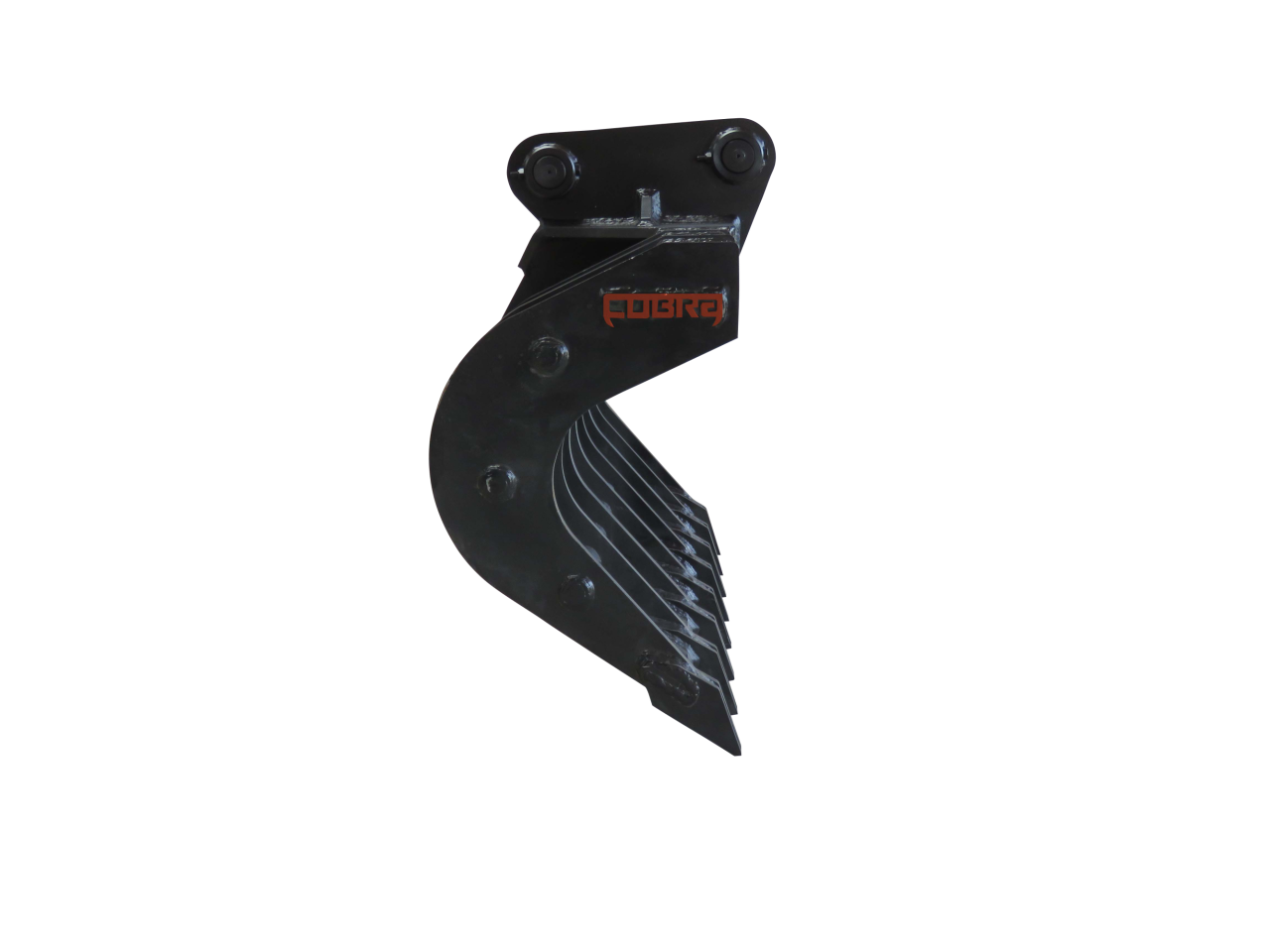

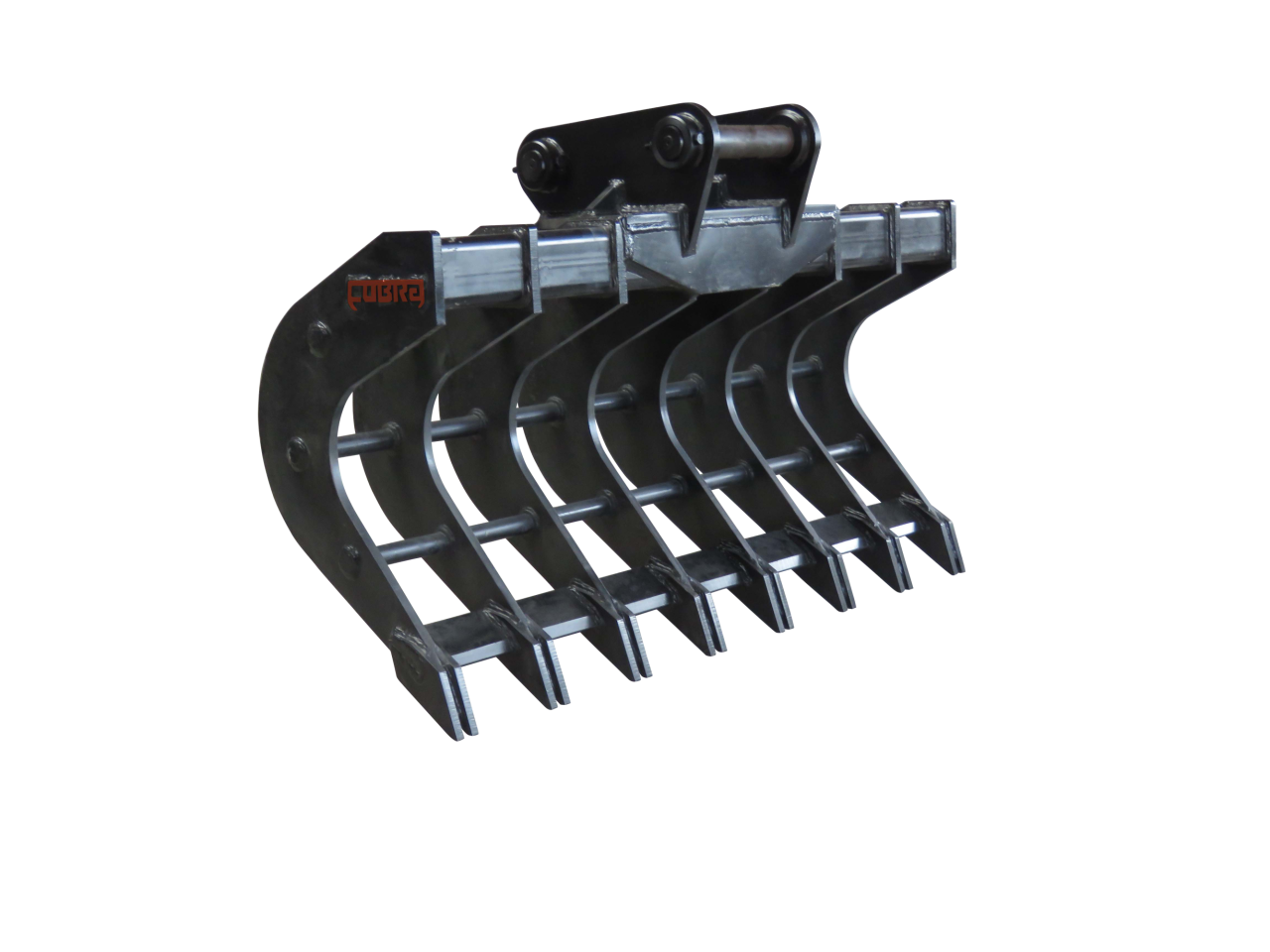

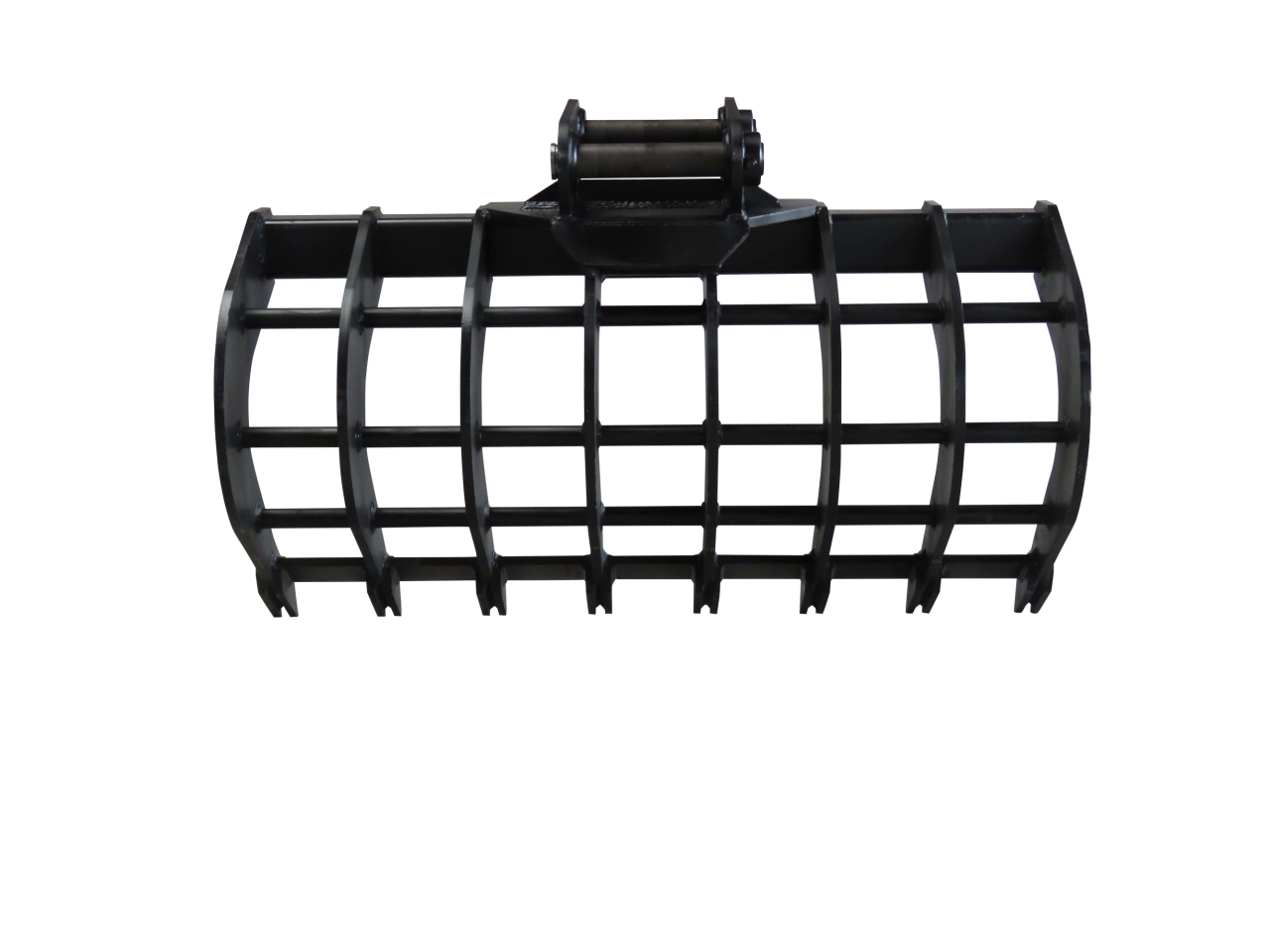

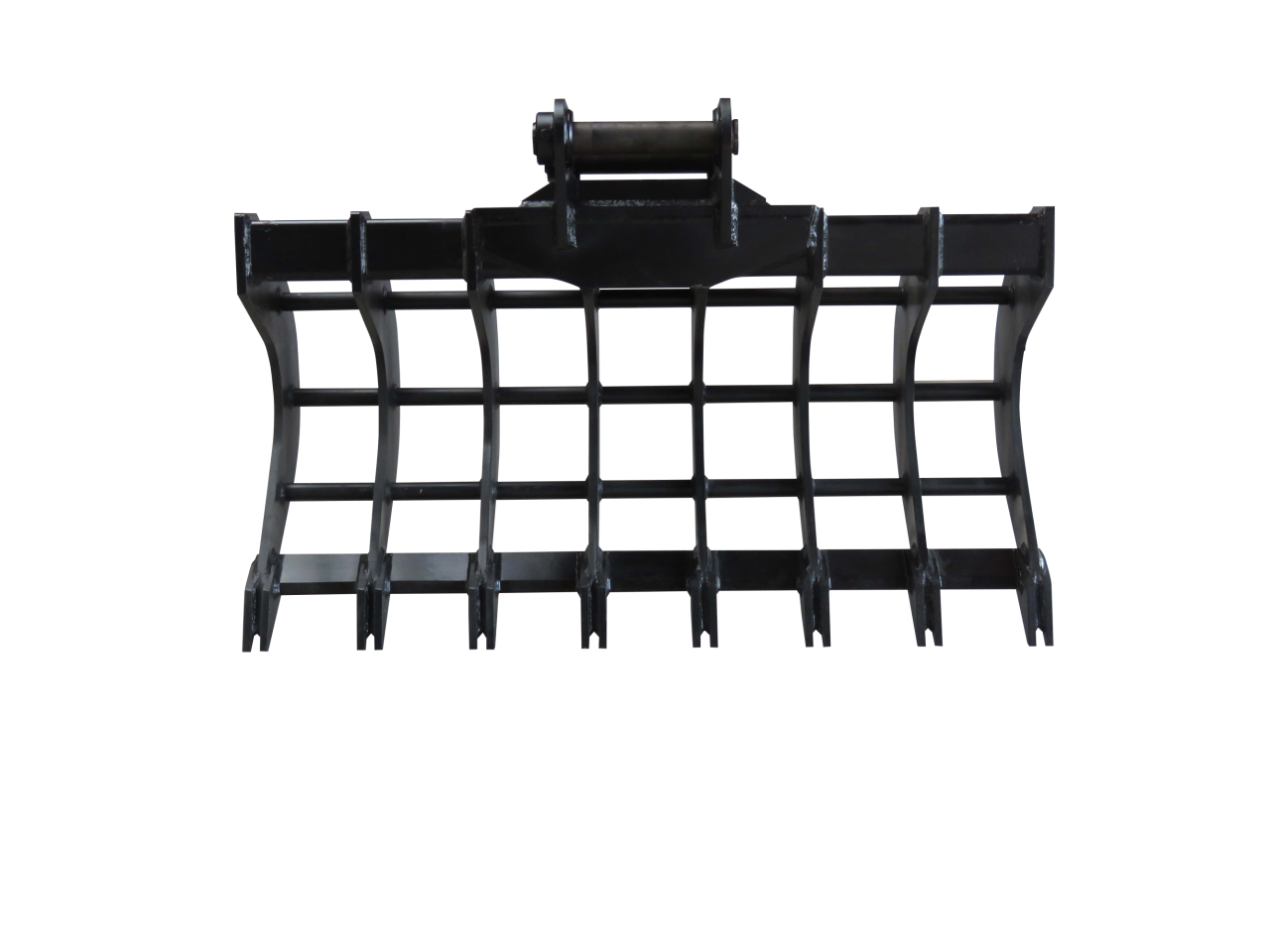

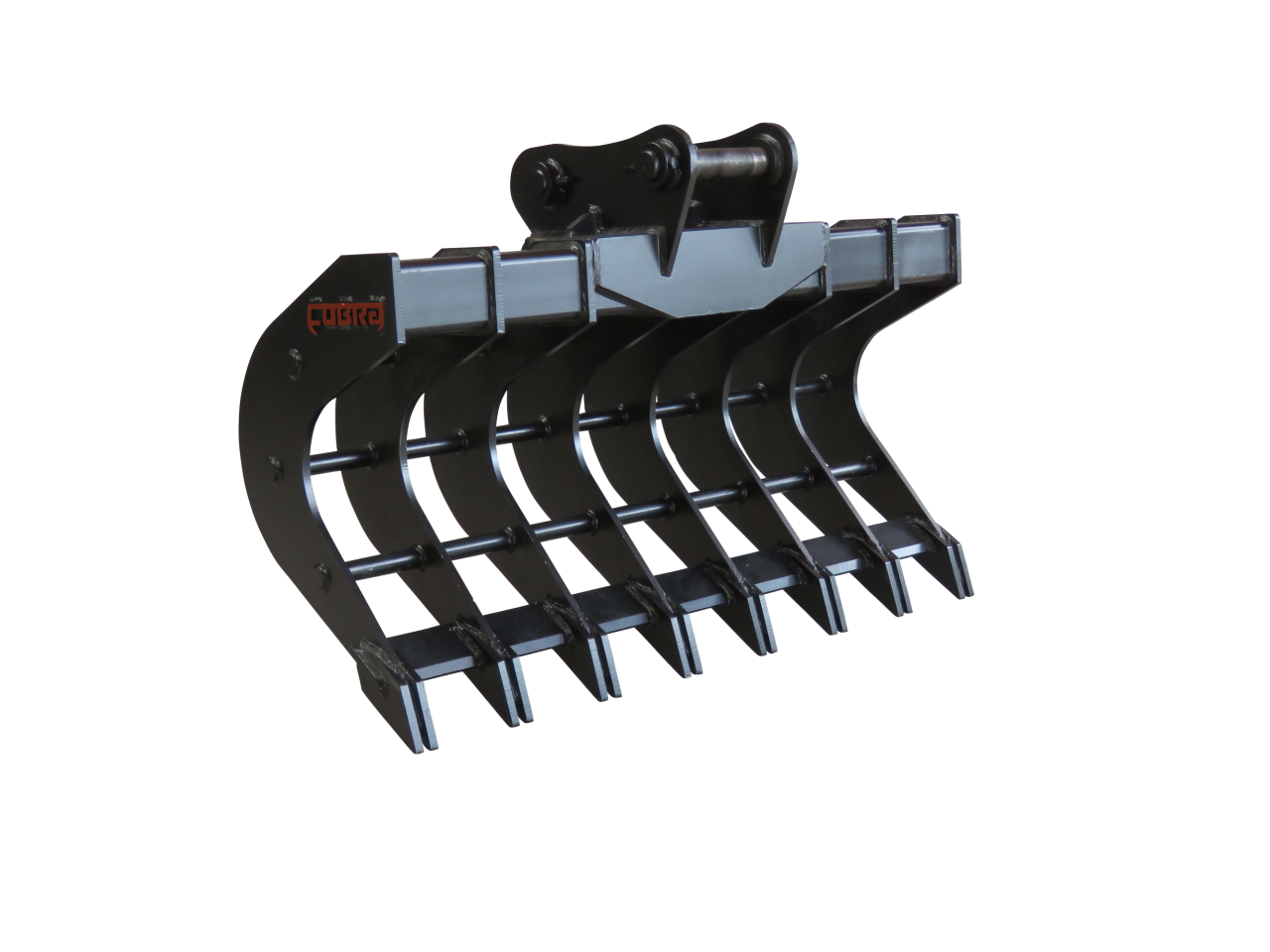

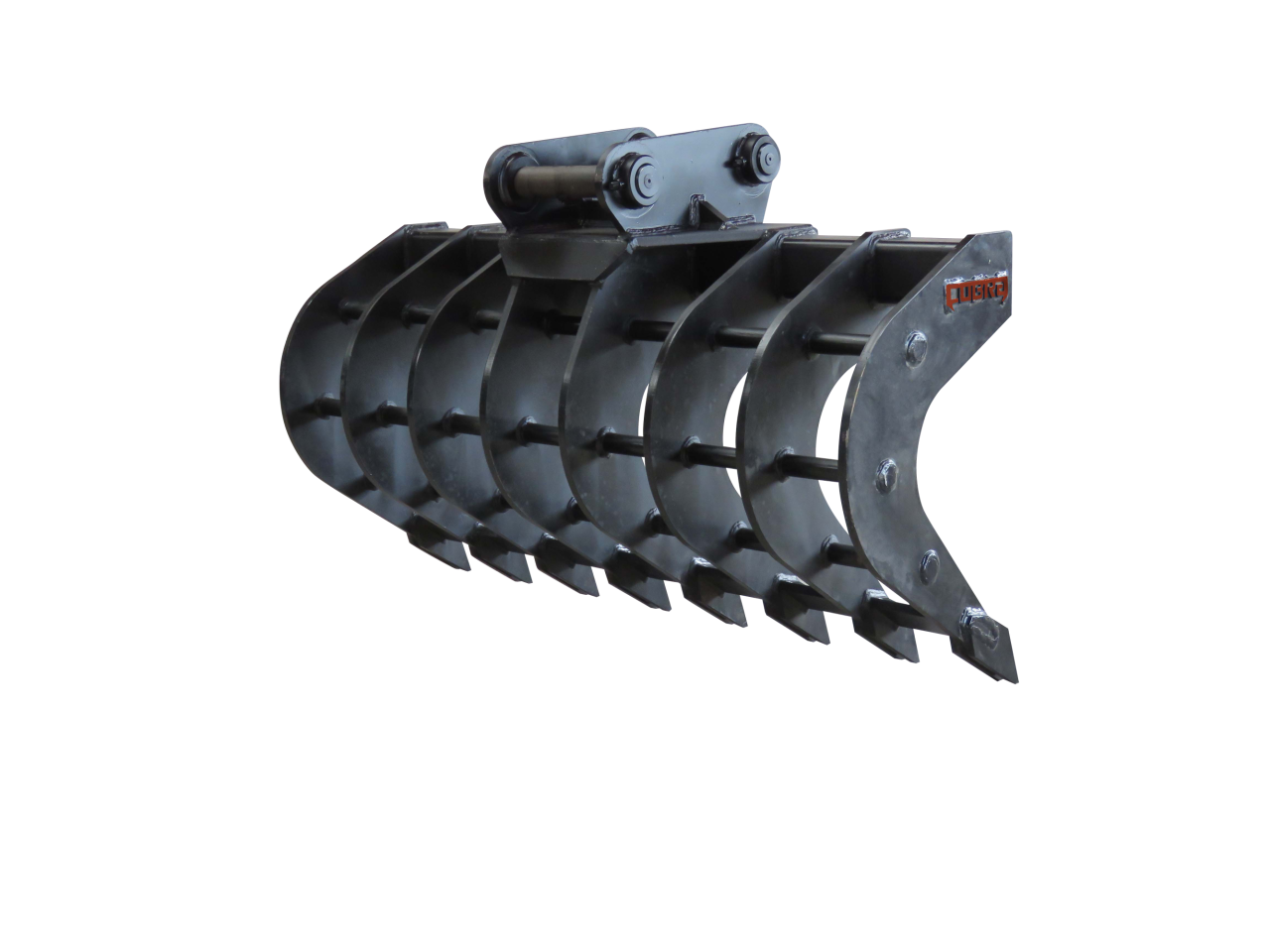

  • 16 25T 2000mm Curved Root Rake FS Recovered copy v5 16 25T 2000mm Curved Root Rake F copy v2 16 25T 2000mm Curved Root Rake S copy v2 16 25T 2000mm Curved Root Rake RS copy v2 16 25T 2000mm Curved Root Rake R copy v2

Specifications

Please note that the specifications of our products are subject to change without notice, as we continuously strive to improve their performance and quality.

Carrier Machine Width (mm) Weight (kg) Tyne Thickness (mm) Tyne Amount Gaps (mm)
1.5 - 2.5T 1000  61 12 8 130
2.5 - 3.9T 1200  98 12 8 155
4 - 5.9T 1500  244 15 8 200
6 - 9.9T 1600  296 15 8 210
10 - 15.9T 1800  617 20 8 235
16 - 25T 2000  890 25 8 260
16 25T 2000mm Curved Root Rake FS Recovered copy v2

Enquire about this product
